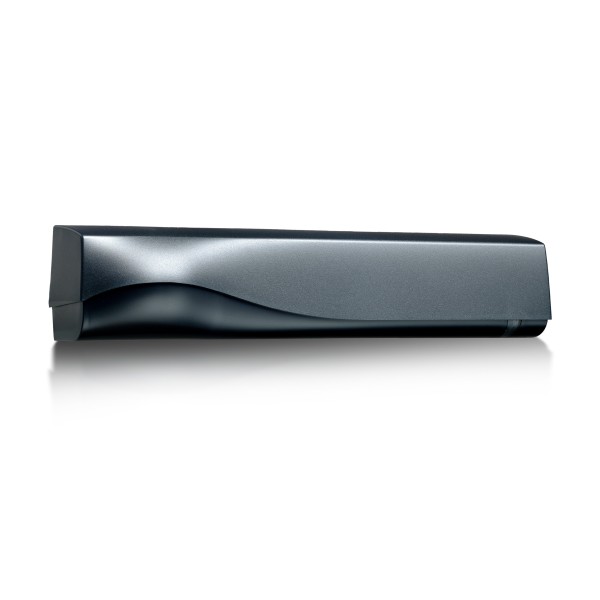

BEA IXIOST Surface-Mount Active Infrared Presence Sensor for Sliding Doors (24 VAC/DC) - 10IXIOST

Key Features:

• Presence Sensor Designed for Automatic Sliding Doors with Clear Opening or Side-Lite Protection
• Dual High-Density Infrared Curtains (Two 24-Spot Arrays) for Precise Detection
• On-Board LCD Screen and Menu-Driven Interface for Intelligent Programming and Troubleshooting
• Visible Alignment Beams Projected on Floor for Quick Setup and Calibration
• Fully Monitored Internally and Capable of External Monitoring for Enhanced Safety Compliance

Specifications:

• Technology: Active Infrared with Background Analysis
• Detection Mode: Presence
• Spot Size: 2 in x 2 in (Typical)
• Maximum Number of Spots: 24 Per Curtain
• Number of Curtains: 2
• Output: Electromechanical Relay (Potential and Polarity Free) - Max Contact Current: 1 A - Max Contact Voltage: 30 VDC
• Solid-State Relay (Potential and Polarity Free) - Max Contact Current: 100 mA - Max Contact Voltage: 42 VDC / 30 VAC
• Hold Time: 0.5 to 9 Seconds (Adjustable)
• Supply Voltage: 12 to 24 VAC ~10 Percent or 12 to 30 VDC ~10 Percent
• Power Consumption: Less Than 2.5 W
• Mounting Height: 6.5 ft to 11.5 ft
• Operating Temperature Range: -13 F to 131 F
• Degree of Protection: IP54
• Dimensions: 10.6 in (W) x 2.25 in (H) x 2.25 in (D)
• Cable Length: 10 ft
