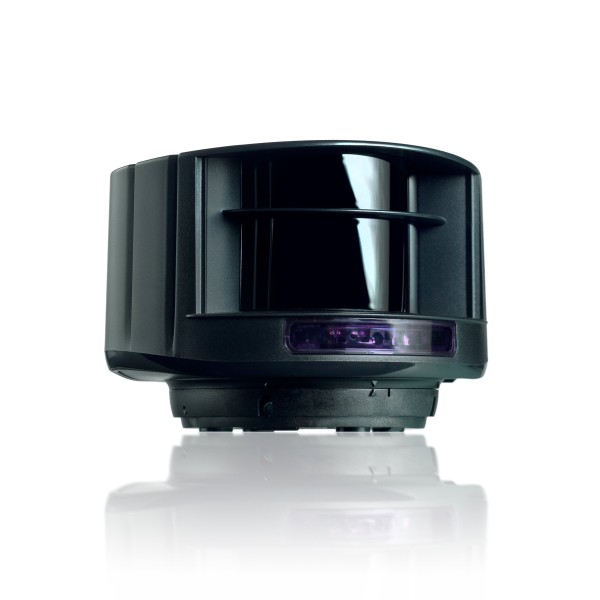

BEA LZR-I30 Laser Scanner for Industrial Automation (US Wire Colors & Configuration) - 10LZRI30

Key Features:

• Laser-based Time-of-Flight Scanner with Four Detection Curtains for Full 3-Dimensional Safety Coverage
• Designed for Industrial Doors, Vehicle Flow, Perimeter Access and Harsh Environments
• Adjustable Via Remote Control; Three Reference LEDs Guide Alignment and Tilt Setup
• High Precision Detection of Small Objects - Down to Approximately 2 in at 30 ft
• Housed in a NEMA 4 / IP65 Rated Enclosure for Outdoor or Indoor Use

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Motion / Presence
• Maximum Detection Range: 30 ft x 30 ft
• Remission Factor: > 2 Percent
• Emission Characteristics - IR Laser: Wavelength 905 nm; Output Power 0.10 mW (Class 1); Red Visible Laser: Wavelength 635 nm; Output Power 0.95 mW (Class 2)
• Supply Voltage: 10 - 35 VDC
• Peak Current at Power-On: 1.8 A (Max 80 ms @ 35 V)
• Power Consumption: Less Than 5 W
• Response Time: Typical 20 ms; Maximum 80 ms plus Output Activation Delay
• Outputs: 2 Electronic Relays (Galvanic Isolated - Polarity Free)
• Maximum Switching Voltage: 35 VDC / 24 VAC
• Maximum Switching Current: 80 mA (Resistive)
• Dimensions: 5 in (W) x 2.75 in (H) x 3.67 in (D)
• Cable Length: 30 ft
• Material / Color: PC / ASA - Black
• Rotation Angle on Bracket: ~5 Degrees (Lockable)
• Tilt Angle on Bracket: ~3 Degrees
• Degree of Protection: IP65 (IEC 60529)
• Operating Temperature Range: -22 F to 140 F (If Powered); 14 F to 140 F (If Unpowered)
• Humidity: 0 Percent to 95 Percent Non-Condensing
• Vibrations: Less Than 2 G
