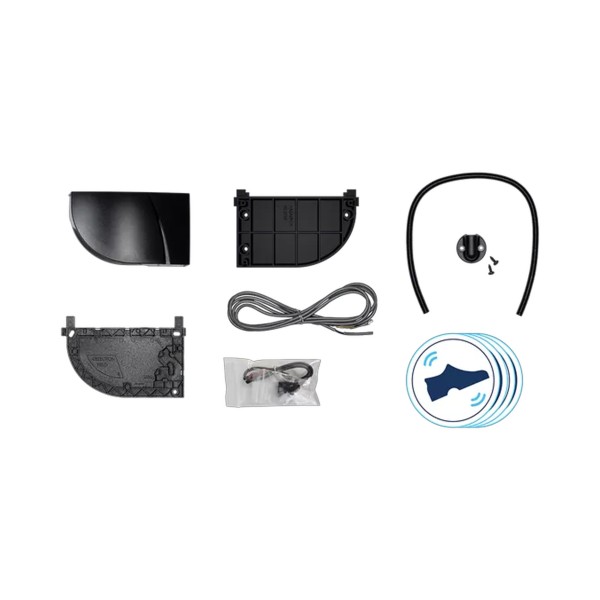

BEA LZR-Flatscan 3D Single Swing Door Sensor Kit (Right Side, Black) - 10LZRFLATSCAN3D-RBK

Key Features:

• Laser-based single swing door sensor kit designed for right-side installation and finished in black
• Utilizes time-of-flight laser technology to provide precise motion detection and presence sensing
• Creates a three-dimensional protective field covering the entire door area, hinge, and approach zones
• Ideal for low energy and automatic swing doors in healthcare, commercial, and public entry applications
• Conforms to ANSI 156.19 standards for safety and performance on low energy door systems

Specifications:

• Technology: Laser scanner using time-of-flight principle
• Detection Type: Presence sensing with four adjustable laser curtains
• Detection Range: Up to 13 feet diagonal at 2 percent reflectivity
• Mounting Height: Adjustable between 75 and 98"
• Detection Angle: Approximately 80 degrees with 20-degree hinge area coverage
• Object Sensitivity: Detects objects as small as 3/4" at 13 feet distance
• Power Supply: 12 to 24 VDC ~15 percent
• Power Consumption: Typically under 2 watts
• Response Time: Less than 120 milliseconds typical, 220 milliseconds maximum
• Outputs: Three isolated electronic relays rated up to 42 VAC/VDC, 100 mA
• Protection Rating: IP44 suitable for indoor and sheltered use
• Dimensions: 5.75" x 3.5" x 2.3"
• Operating Temperature: -13 F to 140 F
