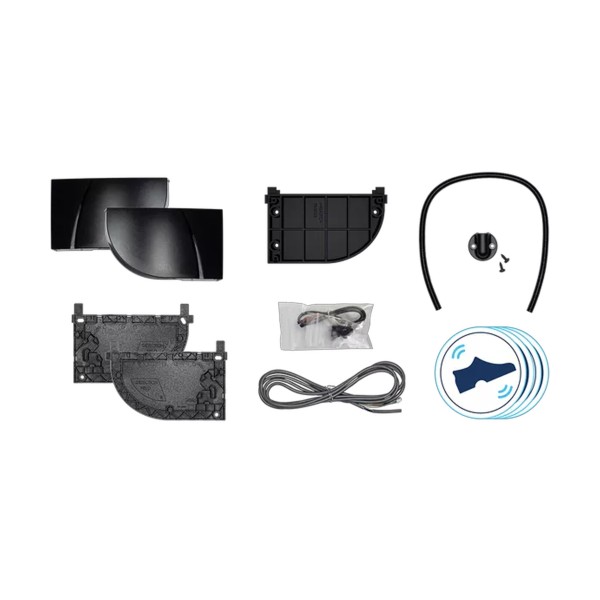

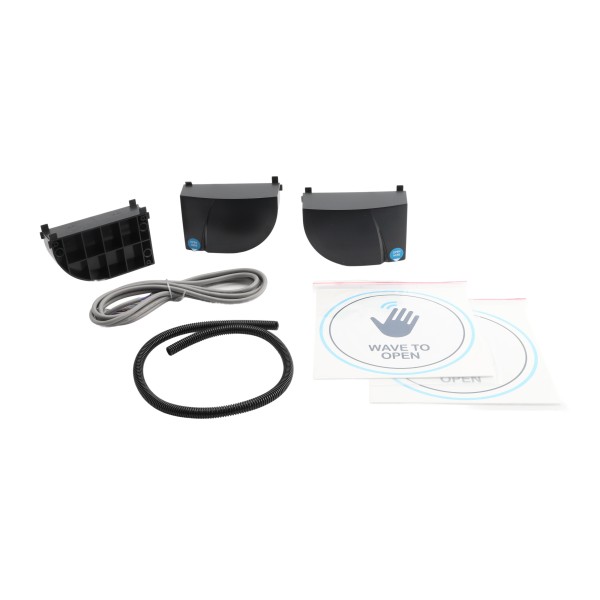

BEA LZR-Flatscan 3D Dual Swing Door Sensor Kit (Black, Left & Right) - 10LZRFLATSCAN3D-SWBK

Key Features:

• Dual swing door sensor kit in black designed for both left and right side installation on low energy and automatic doors
• Employs laser-based time-of-flight detection for accurate motion and presence sensing in three dimensions
• Provides complete door protection, including hinge and threshold coverage, to enhance pedestrian safety
• Eliminates the need for safety mats or guide rails, simplifying installation and reducing maintenance
• Fully compliant with ANSI 156.19 standards for low energy door systems in commercial areas

Specifications:

• Technology: Laser scanner using time-of-flight measurement
• Detection Type: 3D presence sensing with multiple laser curtain layers
• Detection Range: Up to 13 feet diagonal with 2 percent reflectivity
• Mounting Height: Adjustable between 75 and 98"
• Detection Angle: Approximately 80 degrees coverage with hinge protection up to 20 degrees
• Object Sensitivity: Detects objects as small as 3/4" at a 13-foot range
• Power Supply: 12 to 24 VDC ~15 percent
• Power Consumption: Under 2 watts typical
• Response Time: Less than 120 milliseconds typical, 220 milliseconds maximum
• Outputs: Three isolated electronic relays rated up to 42 VAC/VDC, 100 mA
• Protection Rating: IP44 for indoor and sheltered outdoor use
• Dimensions (per sensor): 5.75" x 3.5" x 2.3"
• Operating Temperature: -13 F to 140 F
