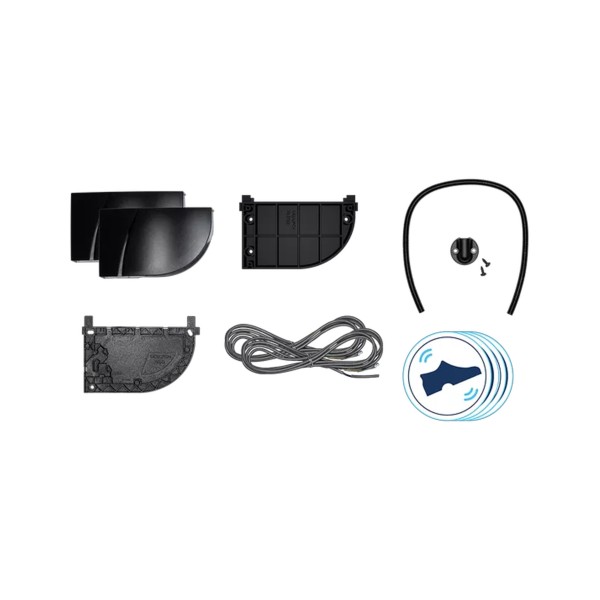

BEA Low Energy LZR-Flatscan 3D Dual Swing Door Sensor Kit (Left Side, Silver) - 10LZRFLATSCAN3D-LELBKIT

Key Features:

• Low energy dual swing door sensor kit utilizing laser time-of-flight technology for precise detection and activation
• Three-dimensional four-curtain detection field covers both door leaves and hinge zones for complete safety coverage
• Virtual push button function allows for touchless activation without additional devices or wiring
• Designed for low energy swing doors used in healthcare, commercial, and clean-room areas where hygiene and accessibility are essential
• Ensures compliance with ANSI 156.19 standards for low energy automatic doors while providing reliable safety and activation

Specifications:

• Technology: Laser scanner using time-of-flight measurement
• Detection Type: Presence detection with four overlapping laser curtains
• Detection Range: Up to 13 feet diagonal with 2 percent reflectivity
• Mounting Height: Adjustable between 75 and 98"
• Detection Angle: Approximately 80 degrees for door leaf coverage and 20 degrees for pinch zone protection
• Object Sensitivity: Detects objects as small as 3/4" at 13 feet in the primary curtain zone
• Power Supply: 12 to 24 VDC ~15 percent, compatible with SELV power systems
• Power Consumption: Less than 2 watts typical
• Response Time: Typically below 120 milliseconds, maximum 220 milliseconds
• Outputs: Three isolated electronic relays rated up to 42 VAC/VDC, 100 mA
• Protection Rating: IP44 rated for indoor and protected outdoor areas
• Dimensions: 5.75" x 3.5" x 2.3"
• Operating Temperature: -13 F to 140 F
