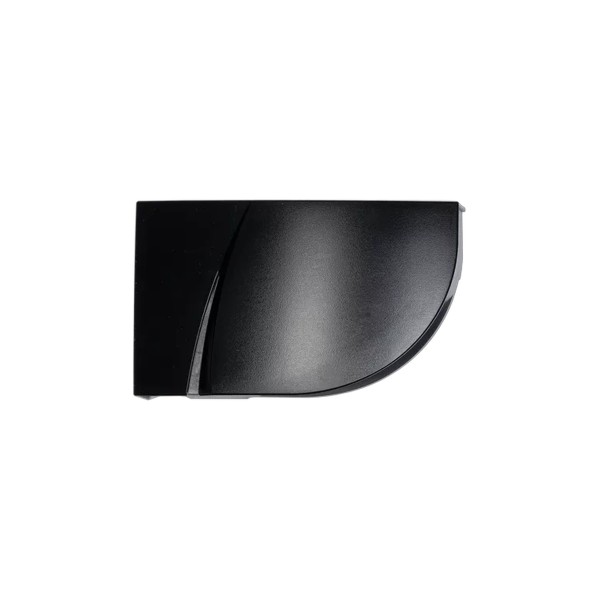

BEA LZR-Flatscan 3D Replacement Door Sensor (Left Side, Black) - 10LZRFLATSCAN3D-LB

Key Features:

• Laser-based Time-of-Flight Sensor with Four High-Definition Laser Curtains for Full Door Leaf Coverage
• Three-Dimensional Detection Field that Extends Across the Opening and Hinge Area for Enhanced Safety
• Built-In Virtual Push Button Functionality for Touch-Free Activation
• Independence from Reflective Floors, Wet Surfaces or Guide Rails thanks to Laser Technology
• Low-Profile Black Housing Designed for Left-Side Mounting in Replacement Kits

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Maximum Detection Range: 13 ft (Diagonal) with 2 % Reflectivity
• Recommended Mounting Height: 75 in to 98 in
• Opening Angle - Door Leaf Safety: 80 Degrees; Pinch Zone Safety: 20 Degrees
• Angular Resolution - Curtain 1: 0.2 Degrees; Curtain 2: 1 Degree; Curtain 3: 1.7 Degrees; Curtain 4: 2.5 Degrees
• Tilt Angles: 0 Degrees to 5 Degrees
• Minimum Object Size: 3/4 in at 13 ft in Curtain C1
• Minimum Door Leaf Speed: 2 Degrees per Second
• Supply Voltage: 12-24 VDC ~15 % (DC Only Operation)
• Power Consumption: Less Than 2 W
• Response Time: Typical Less Than 120 ms - Maximum 220 ms
• Outputs: 3 Electronic Relays (Galvanic Isolation - Polarity Free)
• Maximum Switching Voltage: 42 VAC/VDC
• Maximum Switching Current: 100 mA
• Dimensions: 5.75 in (L) x 3.5 in (H) x 2.33 in (D)
• Material - Color: PC/ASA - Black
• Protection Degree: IP44 (IEC 60529)
• Operating Temperature Range: -13 F to 140 F
• Humidity: 0 % to 95 % Non-Condensing
• Vibration Tolerance: Less Than 2 G RMS
