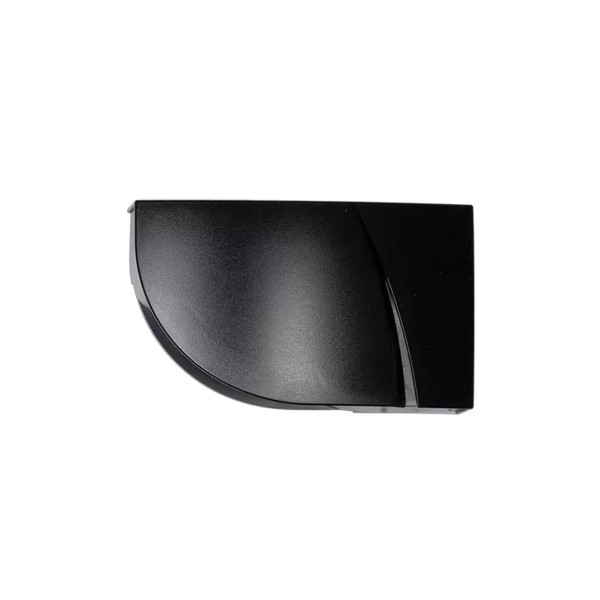

BEA LZR-Flatscan 3D Replacement Door Sensor (Right Side, Black) - 10LZRFLATSCAN3D-RB

Key Features:

• Replacement sensor for BEA LZR-Flatscan 3D system, designed for right-side door installations
• Uses laser-based time-of-flight technology for highly accurate motion detection and safety coverage
• Provides complete three-dimensional door monitoring to ensure user safety during door operation
• Ideal for upgrading or maintaining existing BEA LZR-Flatscan 3D installations in commercial and institutional settings
• Ensures ANSI 156.19 compliance for low energy and automatic swing door systems

Specifications:

• Technology: Laser scanner using time-of-flight measurement
• Detection Type: 3D presence sensing with multiple laser curtain layers
• Detection Range: Up to 13 feet diagonal with 2 percent reflectivity
• Mounting Height: Adjustable between 75 and 98"
• Detection Angle: Approximately 80 degrees for coverage and 20 degrees for hinge zone protection
• Object Sensitivity: Detects objects as small as 3/4" at 13 feet
• Power Supply: 12 to 24 VDC ~15 percent
• Power Consumption: Typically under 2 watts
• Response Time: Under 120 milliseconds, maximum 220 milliseconds
• Outputs: Three isolated electronic relays rated up to 42 VAC/VDC, 100 mA
• Protection Rating: IP44 for indoor and covered outdoor use
• Dimensions: 5.75" x 3.5" x 2.3"
• Operating Temperature: -13 F to 140 F
