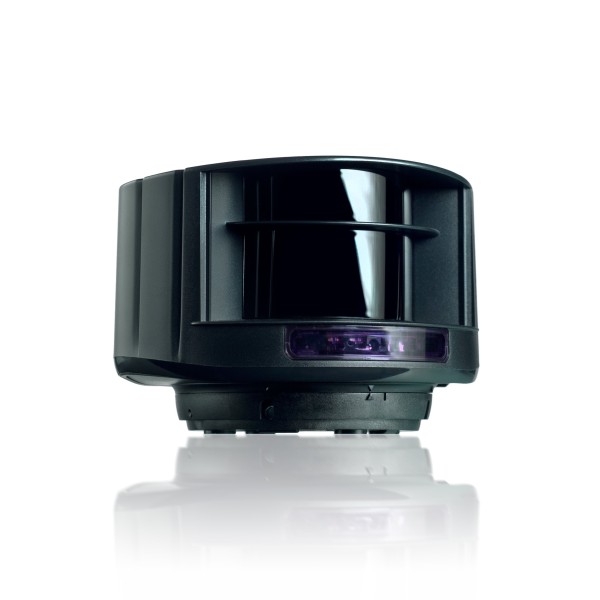

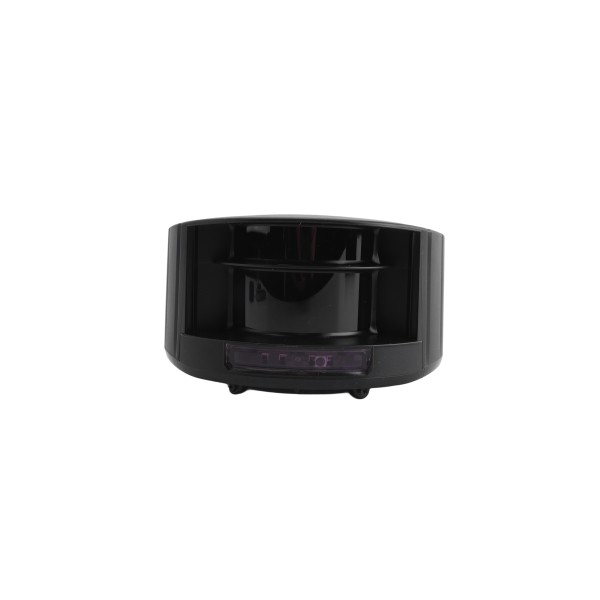

BEA LZR-S600 Laser Scanner for Building Automation & Security - 10LZRS600

Combining motion and presence sensing, the BEA LZR-S600 Laser Scanner for Building Automation & Security detects with exceptional accuracy. This scanner offers a maximum detection field of 82 ft x 82 ft, providing support to building automation, perimeter protection, and access control systems. Built to temper harsh outdoor environments, the BEA LZR-S600 Laser Scanner for Building Automation & Security gives dependable monitoring.

Features:

• Laser-based Time-of-Flight Scanner with Four Detection Curtains for Three-Dimensional Coverage
• Alignment LED Reference Spots and Remote Configuration for Rapid Setup
• Designed for Building Automation and Security with Maximum Detection Field Up to 82 ft x 82 ft
• High Immunity to Environmental Interference

Specifications:

• Power Consumption: Less Than 5 W ; Peak Current at Power-On: 1.8 A (Max 80 ms @ 35 V)
• Technology: LASER Scanner, Time-of-Flight Measurement
• Response Time: Typical 20 ms; Maximum 80 ms + Output Activation Delay
• Maximum Detection Range: 82 ft x 82 ft (Default 33 ft x 33 ft @ 2 Percent Remission Factor)
• Dimensions: 5 in W x 3.66 in H x 2.75 in D (Mounting Bracket Adds 0.5 in)
• Cable Length: 33 ft
