Details

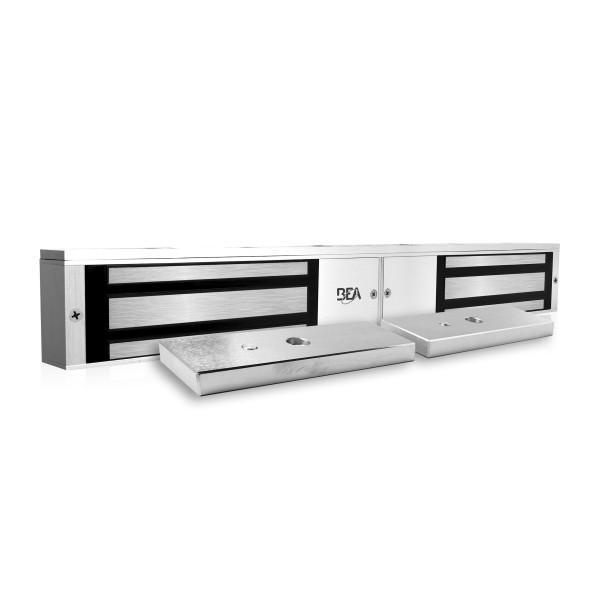

BEA Double Gang UL Listed Maglock (1200lb Hold Force) - 10MAGLOCK5UL

Key Features:

• UL Listed electromagnetic lock providing a powerful 1200 lb holding force for double-door applications
• Dual-lock configuration designed for simultaneous control of paired doors using a single mounting assembly
• Fail-safe magnetic operation releases instantly when power is removed to allow safe egress
• Durable anodized aluminum housing and stainless steel armature plates offer superior corrosion resistance
• Integrated surge and spike protection enhances reliability in demanding access control environments
• Low-profile double gang design suitable for commercial, industrial, and institutional use
• UL Listed for compliance with ANSI/BHMA A156.23 standards and safety regulations

Specifications:

• Lock Type: Double-door electromagnetic lock (UL Listed)
• Holding Force: 1200 lb total (600 lb per door)
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC (per lock)
• Operation Mode: Fail-safe (unlocks when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plates
• Finish: Clear anodized corrosion-resistant finish
• Mounting: Surface-mount double gang configuration for paired doors
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, ANSI/BHMA A156.23 compliant
• Applications: Ideal for double-door access systems in commercial, industrial, and secure facilities
