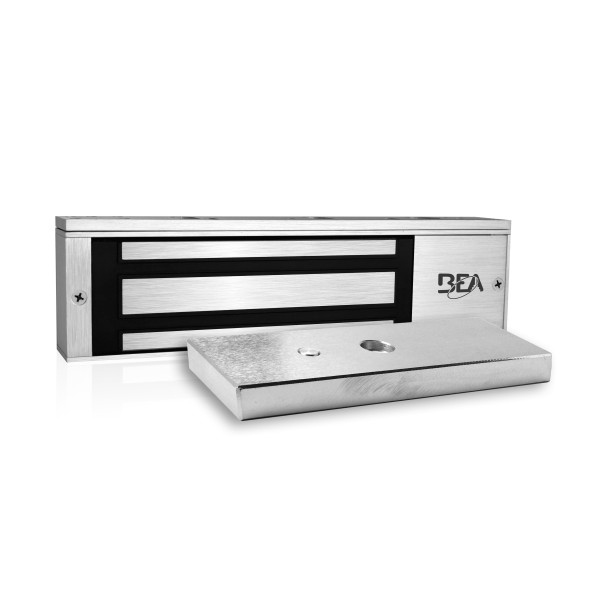

BEA Single Gang UL Listed Maglock (1200lb Hold Force) - 10MAGLOCK1UL

Key Features:

• Powerful single-door electromagnetic lock providing 1200 lb of holding force for maximum security
• UL Listed for safety and reliability in access control and automatic door applications
• Fail-safe magnetic design unlocks automatically when power is removed, ensuring emergency egress capability
• Compact single gang housing allows for versatile installation on standard door frames
• Durable anodized aluminum housing and stainless steel armature plate for long-lasting performance
• Built-in surge and spike protection extends the operational lifespan of the lock and connected components
• Ideal for use in commercial, industrial, and institutional security systems requiring strong electromagnetic locking

Specifications:

• Lock Type: Single-door electromagnetic lock (UL Listed)
• Holding Force: 1200 lb
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC
• Operation Mode: Fail-safe (unlocks when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plate
• Mounting: Surface-mount single gang configuration
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Finish: Clear anodized finish for corrosion resistance
• Certifications: UL Listed, compliant with ANSI/BHMA A156.23 standards
• Applications: Access control systems, secure entryways, and automatic door installations
