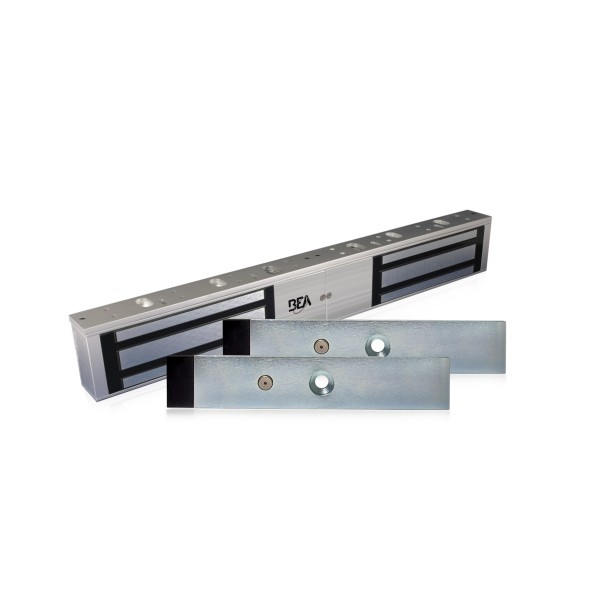

BEA Double Gang UL Listed Maglock with Door Status (600lb Hold Force) - 10MAGLOCK6ULDS

Key Features:

• UL Listed double-door electromagnetic lock offering a total holding force of 600 lb (300 lb per door)
• Integrated door status monitoring for each lock enables security system feedback and door condition awareness
• Fail-safe magnetic design allows for automatic door release during power loss, ensuring safety compliance
• Durable anodized aluminum construction with stainless steel armature plates provides long-term corrosion resistance
• Surge and spike protection circuitry ensures stable electrical performance and component protection
• Low-profile double gang configuration supports installation on paired doors in commercial and institutional environments
• UL and ANSI/BHMA A156.23 certification ensures reliable and code-compliant performance in secure access systems

Specifications:

• Lock Type: Dual-door electromagnetic lock with built-in door status monitoring
• Holding Force: 600 lb total (300 lb per door)
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC (per lock)
• Operation Mode: Fail-safe (unlocks automatically when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plates
• Finish: Clear anodized corrosion-resistant finish
• Switch Type: Door status sensor (SPDT dry contact) per lock
• Mounting: Surface-mount double gang configuration for dual-door systems
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, ANSI/BHMA A156.23 compliant
• Applications: Ideal for dual-door entry systems in commercial, healthcare, and institutional facilities
