Details

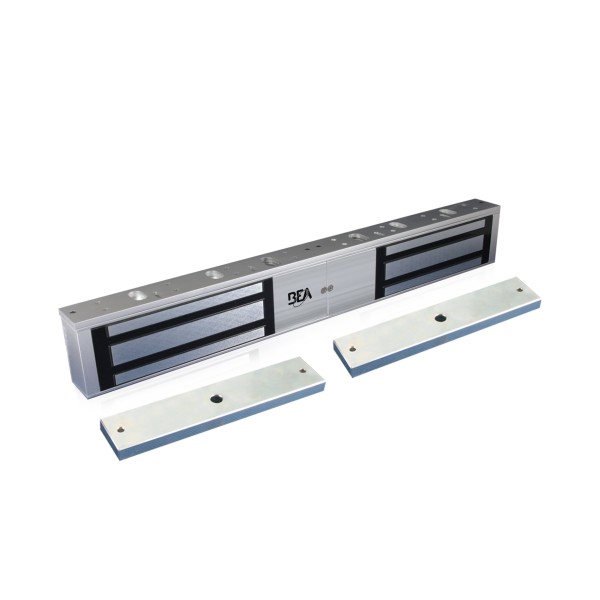

BEA Double Gang UL Listed Maglock (600lb Hold Force) - 10MAGLOCK6UL

Key Features:

• UL Listed electromagnetic lock designed for double-door configurations with 600 lb total holding force (300 lb per door)
• Dual-lock construction enables synchronized operation across both doors for consistent performance
• Fail-safe magnetic mechanism releases instantly when power is removed, ensuring safe and compliant egress
• Constructed from anodized aluminum with stainless steel armature plates for durability and corrosion resistance
• Integrated surge and spike protection safeguards internal components and enhances system longevity
• Compact double gang housing allows easy integration with standard double-door frames
• Meets UL and ANSI/BHMA A156.23 certification standards for secure and reliable access control

Specifications:

• Lock Type: Double-door electromagnetic lock (UL Listed)
• Holding Force: 600 lb total (300 lb per door)
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC (per lock)
• Operation Mode: Fail-safe (unlocks automatically when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plates
• Finish: Clear anodized corrosion-resistant finish
• Mounting: Surface-mount double gang configuration for dual doors
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, ANSI/BHMA A156.23 compliant
• Applications: Designed for dual-door commercial, institutional, and light industrial access control systems
