Details

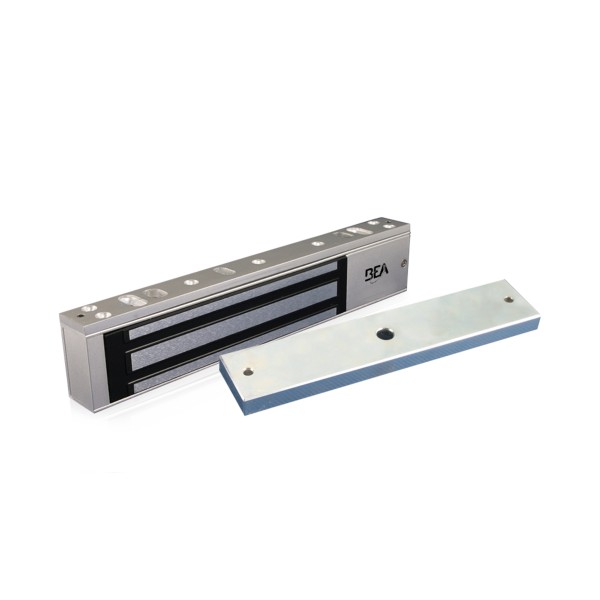

BEA Single Gang UL Listed Maglock with Door Status (600lb Hold Force) - 10MAGLOCK3ULDS

Key Features:

• Compact UL Listed electromagnetic lock offering 600 lb of holding force for secure single-door applications
• Built-in door status sensor provides real-time monitoring of locked and unlocked conditions
• Fail-safe magnetic operation automatically releases when power is removed for safe egress
• Durable anodized aluminum housing with stainless steel armature plate ensures corrosion resistance and longevity
• Includes surge and spike protection to prevent electrical damage and extend service life
• Low-profile single gang design compatible with standard door frames and access control systems
• UL Listed for safety and quality compliance in commercial and institutional use

Specifications:

• Lock Type: Single-door electromagnetic lock with door status monitoring
• Holding Force: 600 lb
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC
• Operation Mode: Fail-safe (unlocks when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plate
• Finish: Clear anodized corrosion-resistant finish
• Switch Type: Built-in door status sensor (SPDT dry contact)
• Mounting: Surface-mount single gang configuration
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, compliant with ANSI/BHMA A156.23 standards
• Applications: Ideal for commercial and institutional access control systems requiring door monitoring
