Details

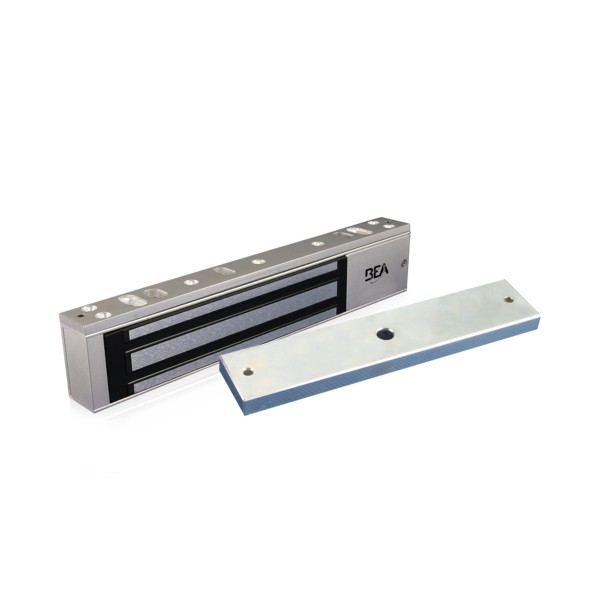

BEA Single Gang UL Listed Maglock (600lb Hold Force)- 10MAGLOCK3UL

Key Features:

• Compact UL Listed electromagnetic lock providing 600 lb of holding force for secure single-door installations
• Fail-safe magnetic locking mechanism releases automatically when power is interrupted, ensuring safe egress during emergencies
• Durable anodized aluminum housing and stainless steel armature plate for superior strength and corrosion resistance
• Built-in surge and spike protection enhances long-term reliability in demanding access control environments
• Low-profile design suitable for restricted spaces and single-door entry applications
• Compatible with standard access control systems for both commercial and institutional use
• UL Listed for quality assurance and compliance with safety standards

Specifications:

• Lock Type: Single-door electromagnetic lock (UL Listed)
• Holding Force: 600 lb
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC
• Operation Mode: Fail-safe (unlocks when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plate
• Finish: Clear anodized corrosion-resistant finish
• Mounting: Surface-mount single gang configuration
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, compliant with ANSI/BHMA A156.23 standards
• Applications: Commercial door systems, interior access control, and automatic door installations
