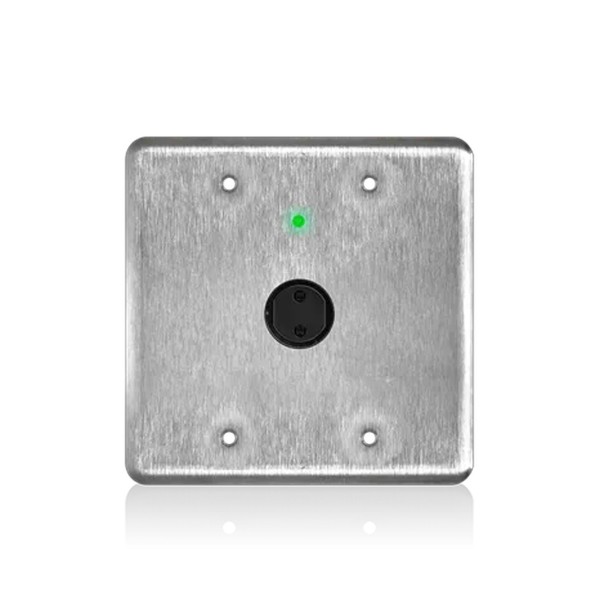

BEA MS51 Relay Double Gang Actuator (No Text or Logo) - 10MS51-DP

The BEA MS51 Relay Double Gang Actuator is an automatic door sensor that is battery-powered with a reduced wiring design. The 10MS51-DP model is made with a stainless steel faceplate without any text or icons. These door actuators have a battery life of up to three years, making them a great long-term solution for facilities looking to improve the accessibility of their entry points. The BEA Magic Switch sensors are built to be reliable and engineered to resist light interference. Being made to withstand outdoor use, one of the key features includes the selectable immunity modes for various weather concerns, such as rain, sleet, or snow. These units can be mounted in many different ways thanks to the reduced wiring design.

Specifications:

• Dimensions: 4.5" x 4.5" x 1.25"
• Technology: Active infrared with 2 IR sensors
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 V DC (two AA batteries)
• Output: Single galvanically isolated relay, rated 42 V AC/V DC at 100 mA max
• Operating Temperature: -22 degrees F to 158 degrees F (-30 degrees C to 70 degrees C)
• Enclosure Rating: IP65-rated for protection against water and dust
• Material: 304 Stainless Steel faceplate and Polycarbonate sensor window
