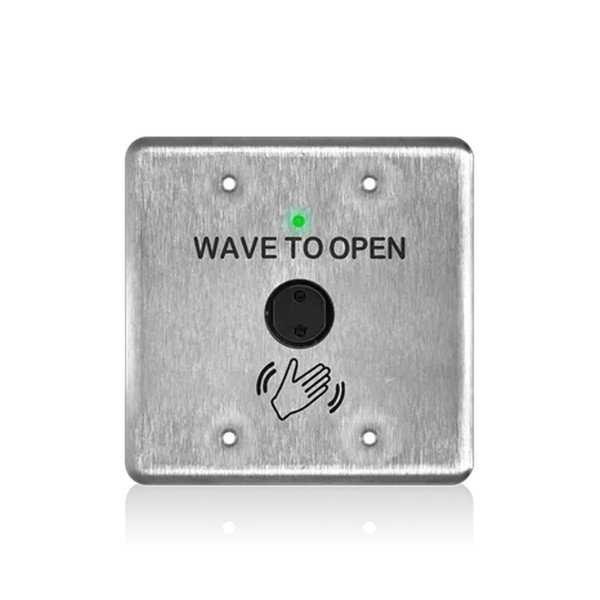

BEA MS51 Relay Wave to Open Double Gang Actuator (Logo Only) - 10MS51-D

Key Features:

• Battery-powered touchless actuator with a double-gang stainless steel faceplate designed for "Wave to Open" activation
• Active infrared sensing technology detects hand motion up to 12" in long-range mode or 6" in short-range mode
• Selectable immunity settings minimize false activations caused by areaal factors such as rain, sunlight, or reflective surfaces
• Operates for up to three years on standard batteries when configured for short-range detection and moderate daily use
• Simple retrofit design allows installation into existing double-gang mounting boxes with minimal wiring

Specifications:

• Technology: Active infrared with dual sensor configuration
• Detection Range: 6 to 12" adjustable depending on selected mode
• Power Supply: 3 VDC (two AA batteries)
• Output: One electronic relay (galvanically isolated), rated for up to 42 VAC/VDC and 100 mA switching
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65 weather-resistant design
• Faceplate Dimensions: 4.5" x 4.5" x 1.25" (double gang)
• Material: 304 stainless steel faceplate with polycarbonate sensor housing
