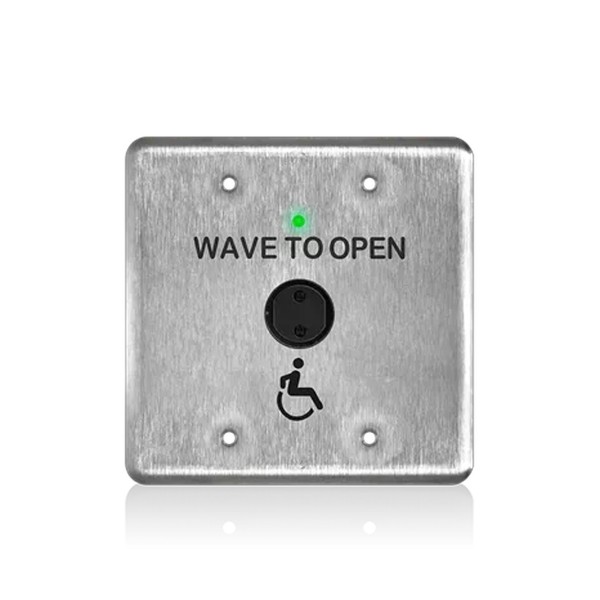

BEA MS51 Relay Wave to Open Double Gang Actuator (Logo Only) - 10MS51-DA

Key Features:

• Battery-powered double-gang actuator with touchless "Wave to Open" functionality for hygienic access control
• Features the BEA logo only on a sleek stainless steel plate for a clean and professional look
• Active infrared sensing technology enables precise motion detection for reliable door activation
• Adjustable detection range between 6 and 12" for tailored sensitivity in various areas
• Selectable immunity settings help prevent false triggers caused by sunlight, reflections, or precipitation
• Operates up to three years on standard AA batteries when configured for short-range detection
• Retrofit-friendly design allows for easy installation into existing double-gang boxes without complex wiring

Specifications:

• Technology: Active infrared dual-sensor motion detection
• Detection Range: Adjustable between 6 and 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single electronic relay (galvanically isolated), rated up to 42 VAC/VDC and 100 mA switching
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65 dust and moisture resistance
• Faceplate Dimensions: 4.5" x 4.5" x 1.25" (double gang)
• Material: 304 stainless steel faceplate with BEA logo only and polycarbonate sensor housing
