Details

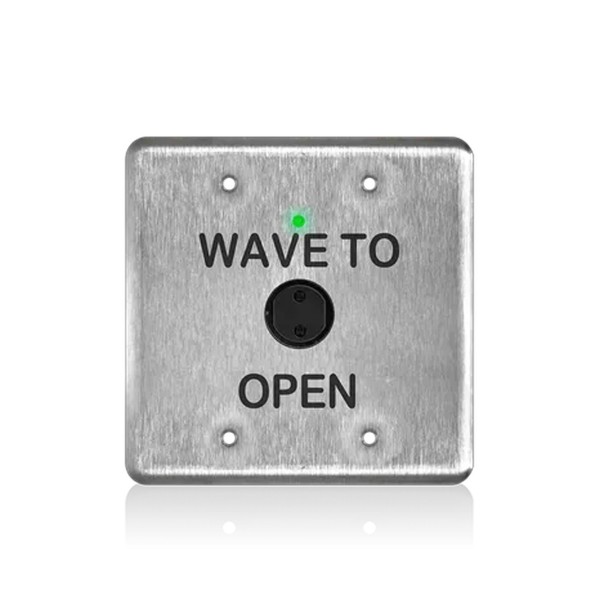

BEA MS51 Relay "Wave to Open" Double Gang Actuator (Text Only) - 10MS51-DT

Key Features:

• Double-gang battery-powered actuator with "Wave to Open" text engraving for clear visual indication
• Touchless operation enhances hygiene by eliminating physical contact with the door control surface
• Equipped with active infrared technology for accurate motion detection in high-traffic areas
• Adjustable detection range of 6 to 12" ensures reliable activation based on proximity needs
• Selectable immunity settings reduce false activations caused by sunlight, reflective surfaces, or moisture
• Operates for up to three years on standard AA batteries depending on usage and configuration
• Retrofit-ready design allows for quick installation into existing double-gang boxes

Specifications:

• Technology: Dual-sensor active infrared motion detection
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated electronic relay, rated up to 42 VAC/VDC and 100 mA switching current
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65-rated for moisture and dust resistance
• Faceplate Dimensions: 4.5" x 4.5" x 1.25" (double gang)
• Material: 304 stainless steel faceplate featuring "Wave to Open" text with a polycarbonate sensor housing
