Details

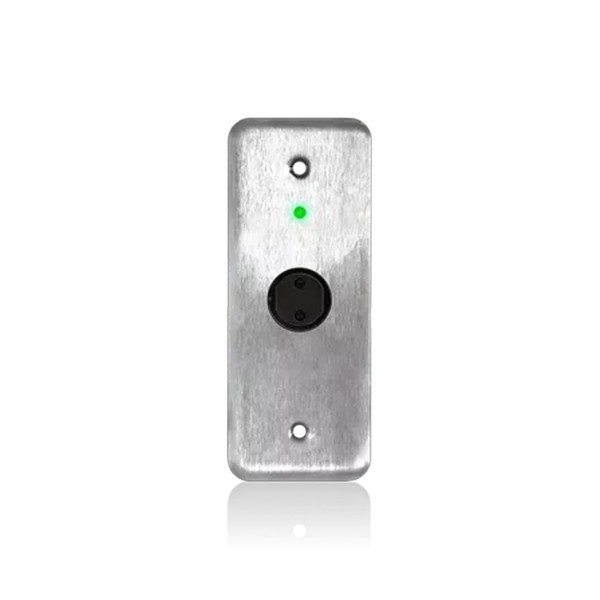

BEA MS51 Relay Jamb Actuator (No Text or Logo) - 10MS51-JP

Key Features:

• Minimalist jamb-mounted actuator with no text or logo, providing a clean and unobtrusive appearance
• Employs BEA's active infrared technology for reliable touchless activation within a selectable range of 6 to 12"
• Supports hands-free operation, promoting a hygienic and convenient solution for commercial and healthcare areas
• Configurable detection sensitivity and immunity levels help reduce false triggers from reflective surfaces or ambient light
• Battery-powered design eliminates the need for hardwiring and offers up to three years of operation on standard AA batteries
• Compact jamb plate fits narrow mounting spaces, ideal for door frames and constrained wall areas
• Constructed from high-quality stainless steel for corrosion resistance

Specifications:

• Technology: Active infrared motion sensing with dual detection zones
• Detection Range: Adjustable between 6 and 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay, rated 42 VAC/VDC at 100 mA maximum
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65-rated for resistance to water and dust ingress
• Faceplate Dimensions: 1.75" x 4.5" x 1.25" (jamb size)
• Material: 304 stainless steel faceplate with no markings or logos and a polycarbonate sensor cover
