Details

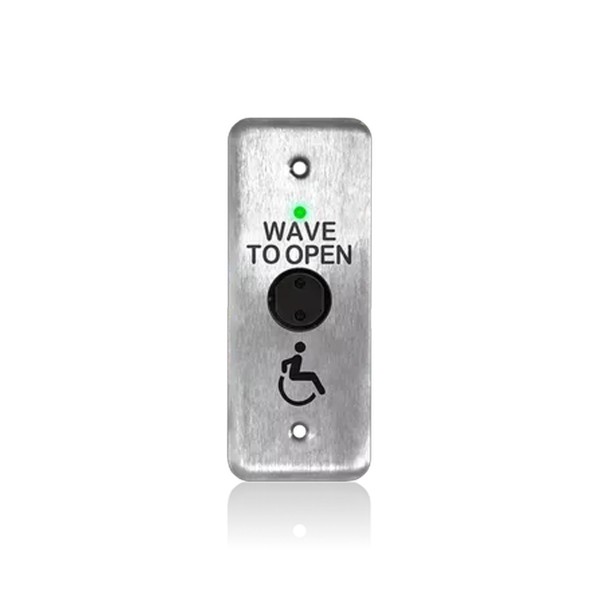

BEA MS51 Relay Wave to Open Jamb Actuator (Logo Only) - 10MS51-JA

Key Features:

• Touchless jamb-mounted actuator with "Wave to Open" functionality for hygienic and convenient door activation
• Displays the accessibility logo only, providing a universal indicator ideal for ADA-compliant installations
• Utilizes active infrared technology to detect motion within a selectable range of 6 to 12"
• Operates hands-free to minimize the spread of germs and improve accessibility in public and healthcare facilities
• Features adjustable sensitivity and immunity settings to prevent false activations from areaal interference
• Battery-powered system ensures easy installation and up to three years of continuous use on standard AA batteries
• Jamb-size form factor fits narrow spaces and is compatible with retrofit or new construction setups

Specifications:

• Technology: Dual active infrared motion detection sensors
• Detection Range: Adjustable between 6 and 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay, rated up to 42 VAC/VDC and 100 mA switching capacity
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65 for protection against moisture and dust
• Faceplate Dimensions: 1.75" x 4.5" x 1.25" (jamb size)
• Material: 304 stainless steel faceplate featuring accessibility logo only, with a polycarbonate sensor housing
