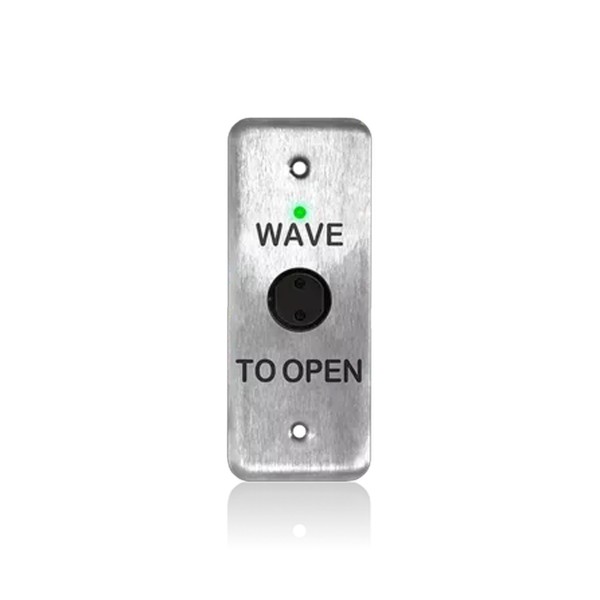

BEA MS51 Relay "Wave to Open" Jamb Actuator (Text Only) - 10MS51-JT

Key Features:

• Touchless jamb-mounted actuator featuring "Wave to Open" text for intuitive, accessible door activation
• Designed for hygiene-sensitive areas, eliminating the need for physical contact to trigger door operation
• Utilizes active infrared sensing technology with a configurable detection range of 6 to 12"
• Provides precise activation performance with immunity adjustments to minimize false triggers from areaal factors
• Battery-operated for easy installation and maintenance-free operation lasting up to three years on AA batteries
• Compact jamb-style plate ideal for tight mounting locations such as door frames or narrow surfaces
• Constructed with stainless steel for long-lasting strength and a professional appearance

Specifications:

• Technology: Dual active infrared motion detection sensors
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay output, rated 42 VAC/VDC at 100 mA max
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65-rated for dust and moisture resistance
• Faceplate Dimensions: 1.75" x 4.5" x 1.25" (jamb size)
• Material: 304 stainless steel faceplate with "Wave to Open" text only and polycarbonate sensor housing
