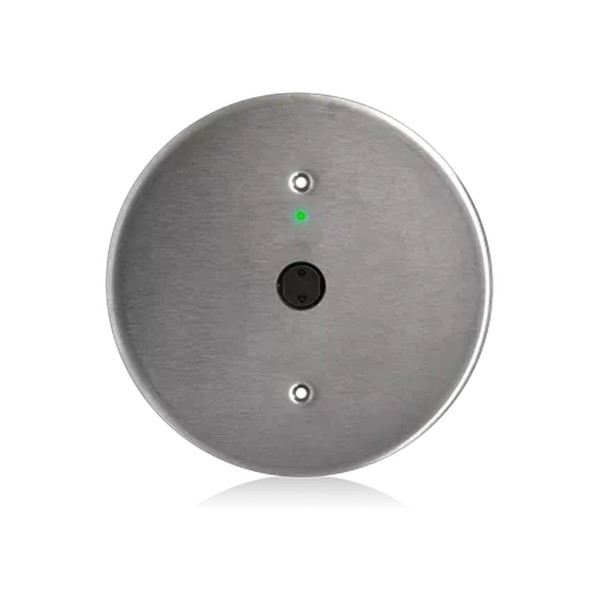

BEA MS51 Relay Round Actuator (No Text or Logo) - 10MS51-RP

The BEA MS51 Relay Round Actuator is an automatic door opening sensor that provides enhanced accessibility and improved traffic flow to commercial buildings and hospitals. The contactless design of these door actuators promotes germ-free access points and improved traffic flow to any facility. The 10MS51-RP version features a plain, stainless steel faceplate for a minimalist aesthetic. These door sensors are incredibly accurate with consistent detection even with environmental interference. One of the main features includes the selectable immunity modes for various weather disturbances such as rain, sleet, or snow. Mounting is easy and versatile with the reduced wiring design.

Specifications:

• Dimensions: 6" x 1.25"
• Technology: Active infrared with 2 IR sensors
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 V DC (two AA batteries)
• Output: Single galvanically isolated relay, rated 42 V AC/V DC at 100 mA max
• Operating Temperature: -22 degrees F to 158 degrees F (-30 degrees C to 70 degrees C)
• Enclosure Rating: IP65-rated for protection against water and dust
• Material: 304 Stainless Steel faceplate and Polycarbonate sensor window
