Details

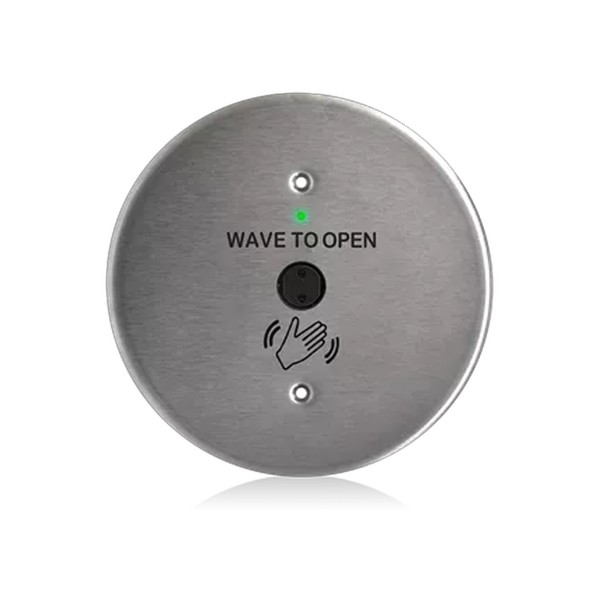

BEA MS51 Relay Wave to Open Round Actuator (Logo Only) - 10MS51-R

Key Features:

• Round touchless actuator with accessibility logo only, ideal for ADA-compliant automatic door activation
• Operates via active infrared motion detection, ensuring reliable hands-free performance in high-traffic areas
• Adjustable detection range between 6 and 12" allows customization to specific installation needs
• Provides single relay output for seamless integration with automatic door control systems
• Fully battery-powered design offers flexible placement and simple retrofit installation without additional wiring
• 6-inch round stainless steel faceplate provides a modern, professional finish that complements various architectural styles
• Sealed sensor assembly protects against dust and moisture, suitable for both indoor and semi-outdoor applications

Specifications:

• Technology: Active infrared motion sensing with dual detection zones
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay rated up to 42 VAC/VDC at 100 mA max
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65-rated for water and dust resistance
• Faceplate Dimensions: 6" diameter x 1.25" depth (round plate)
• Material: 304 stainless steel faceplate with accessibility logo only and polycarbonate sensor housing
