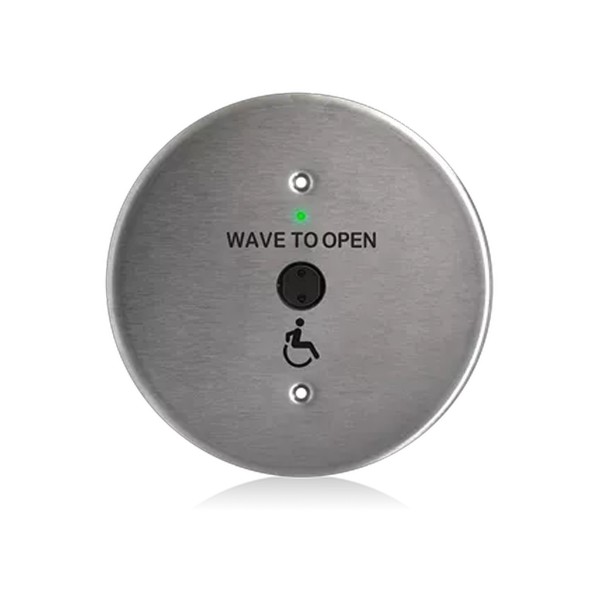

BEA MS51 Relay Wave to Open Round Actuator (Logo Only) - 10MS51-RA

Key Features:

• Round touchless actuator with accessibility logo, designed for ADA-compliant automatic door systems
• Employs BEA's active infrared motion sensing technology for dependable hands-free activation
• Adjustable detection zone (6 to 12 inches) allows flexibility to suit various doorway configurations
• Provides single relay output compatible with standard door operators and access control systems
• Battery-powered for quick, wire-free installation and extended operational life of up to three years
• 6-inch round stainless steel faceplate with etched accessibility logo for easy visibility and compliance
• Sealed enclosure ensures consistent operation in environments exposed to dust, moisture, and temperature variation

Specifications:

• Technology: Active infrared motion sensing with dual detection zones
• Detection Range: Adjustable from 6 to 12 inches
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay, rated 42 VAC/VDC at 100 mA max
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65-rated for protection against water and dust ingress
• Faceplate Dimensions: 6 inches diameter x 1.25 inches depth
• Material: 304 stainless steel faceplate featuring accessibility logo only and polycarbonate sensor window
