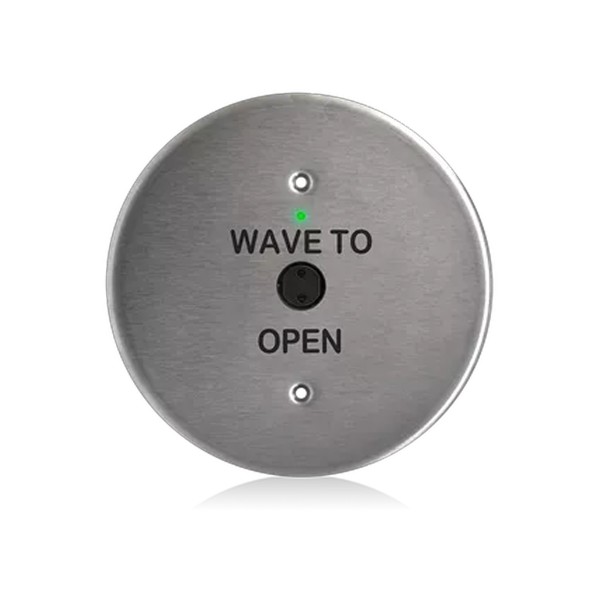

BEA MS51 Relay "Wave to Open" Round Actuator (Text Only) - 10MS51-RT

Key Features:

• Round touchless actuator featuring "Wave to Open" text only for clear and intuitive door activation
• Uses BEA's active infrared sensing technology to detect motion for hygienic, hands-free operation
• Adjustable detection range from 6 to 12" allows customized sensitivity for different areas
• Provides a single relay output for universal compatibility with automatic door operators and access systems
• Battery-powered unit ensures simple retrofit or new installations without requiring electrical wiring
• 6-inch round stainless steel plate with bold "Wave to Open" text for high visibility in commercial and public buildings
• Fully sealed sensor assembly provides IP65 protection against dust, dirt, and moisture exposure

Specifications:

• Technology: Active infrared motion sensing
• Detection Range: Adjustable between 6 and 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay rated for 42 VAC/VDC at 100 mA max
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65-rated for dust and water resistance
• Faceplate Dimensions: 6" diameter x 1.25"
• Material: 304 stainless steel faceplate with engraved "Wave to Open" text and polycarbonate sensor window
