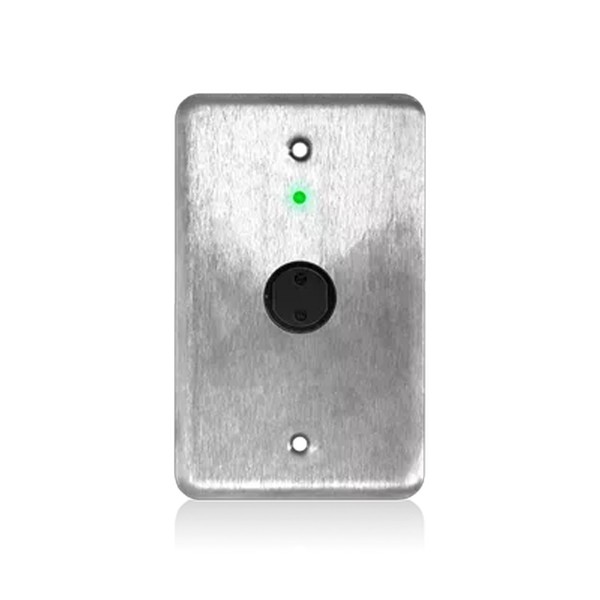

BEA MS51 Relay Single Gang Actuator (No Text or Logo) - 10MS51-SP

Key Features:

• Single gang touchless actuator with a text-free and logo-free faceplate for minimalist installations
• Uses BEA's proven active infrared sensing technology for reliable and hygienic touchless activation
• Adjustable detection range from 6 to 12" allows for customizable activation sensitivity
• Includes a single relay output compatible with automatic doors and access control systems
• Battery-powered operation (two AA batteries) provides simple, wire-free installation
• Low-profile stainless steel single gang design ideal for modern commercial and healthcare areas
• IP65-rated housing for resistance against water, dust, and areaal contaminants

Specifications:

• Technology: Active infrared motion detection
• Detection Range: Adjustable between 6 and 12"
• Power Supply: 3 VDC (two AA batteries)
• Output: Single galvanically isolated relay rated 42 VAC/VDC at 100 mA max
• Operating Temperature: -22 F to 158 F (-30 C to 70 C)
• Enclosure Rating: IP65 for protection against dust and moisture
• Faceplate Dimensions: 4.5" x 2.75" x 1.25"
• Material: 304 stainless steel faceplate with polycarbonate sensor lens
