BEA MS51 Relay "Wave to Open" Single Gang Actuator (Text & Accessibility Logo, French) - 10MS51-SAF

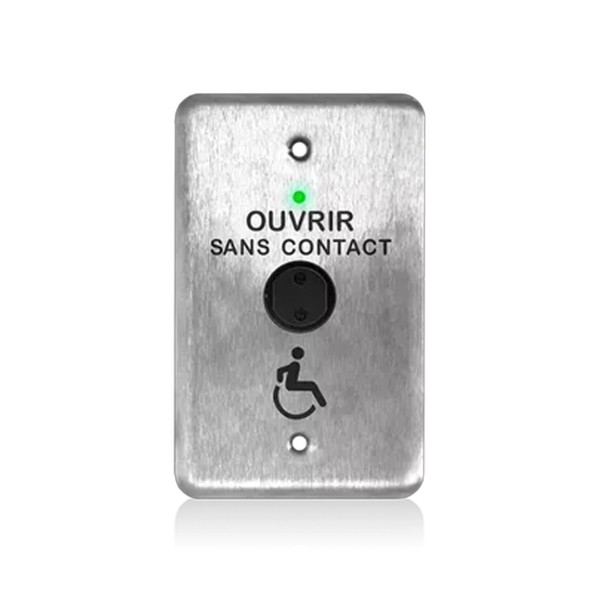

The BEA MS51 Relay "Wave to Open" Single Gang Actuator is a touchless door sensor that is used to activate automatic doors. These actuators are battery-powered with a reduced wiring design that allows for flexible mounting options and easy installation. The 10MS51-SAF model is in French, featuring "OUVRIR SANS CONTACT" text and a wheelchair accessible icon on the stainless steel faceplate. The BEA Magic Switch automatic door sensor is ideal for commercial buildings, hospitals, and other facilities that need enhanced accessibility or germ-free access points. The advanced light-cancelling technology reduces the amount of unwanted detections that may be caused by direct sun or light pollution. The battery can last up to three years, making these units perfect for long-term use.

Specifications:

• Dimensions: 4.5" x 2.75" x 1.25"
• Technology: Active infrared with 2 IR sensors
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 V DC (two AA batteries)
• Output: Single galvanically isolated relay, rated 42 V AC/V DC at 100 mA max
• Operating Temperature: -22 degrees F to 158 degrees F (-30 degrees C to 70 degrees C)
• Enclosure Rating: IP65-rated for protection against water and dust ingress
• Material: 304 Stainless Steel faceplate and Polycarbonate sensor window
