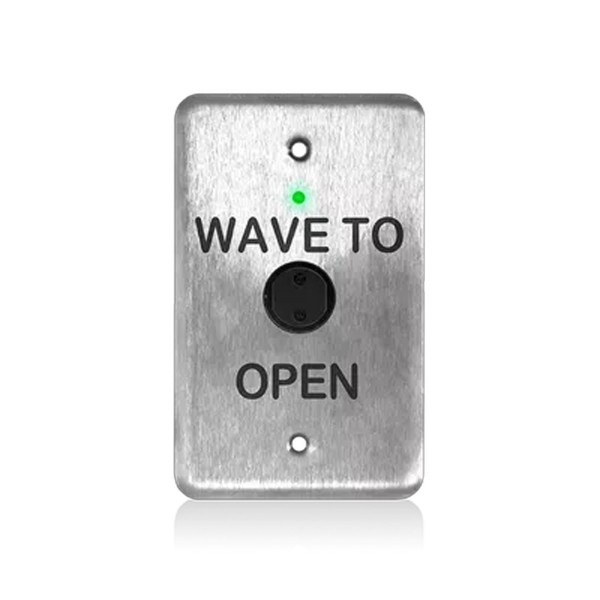

BEA MS51 Relay "Wave to Open" Single Gang Actuator (Text Only) - 10MS51-ST

The BEA MS51 Relay "Wave to Open" Single Gang Actuator is a contact-free door opener that can activate an automatic door without physical contact. These door actuators are made with sensors that greatly reduce light interference, making them a reliable solution for facilities that require accessible entrances. The 10MS51-ST model features a stainless steel faceplate with the text "WAVE TO OPEN" for clear instructions. With reduced wiring, the BEA Magic Switch line of door actuators are easy to mount and install, yet are still capable of being hardwired if necessary. Customizable immunity modes make these units stand out, offering reliable operation even through intense weather disturbances.

Specifications:

• Dimensions: 4.5" x 2.75" x 1.25"
• Technology: Active infrared with 2 IR sensors
• Detection Range: Adjustable from 6 to 12"
• Power Supply: 3 V DC (two AA batteries)
• Output: Single galvanically isolated relay, rated 42 V AC/V DC at 100 mA max
• Operating Temperature: -22 degrees F to 158 degrees F (-30 degrees C to 70 degrees C)
• Enclosure Rating: IP65-rated for protection against water and dust ingress
• Material: 304 Stainless Steel faceplate and Polycarbonate sensor window
