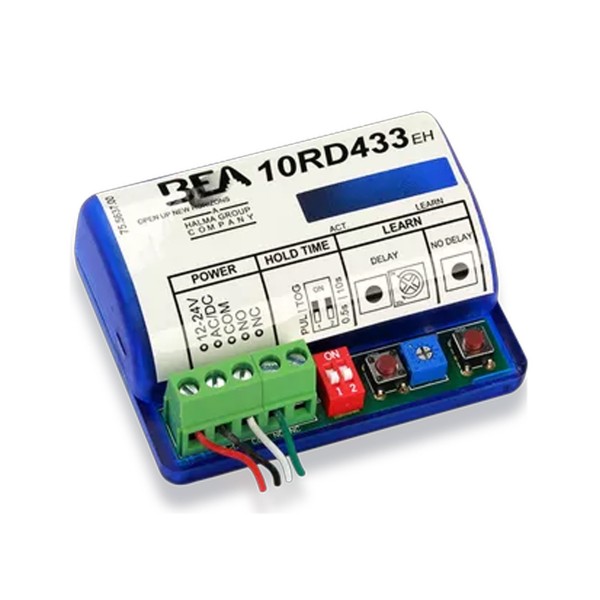

BEA Extended Hold Digital Receiver (433 MHz) - 10RD433EH

Compatible with BEA digital transmitters, the BEA Extended Hold Digital Receiver (433 MHz) provides an extended hold-time receiver that keeps the door open as long as the wireless signal is received. Ideal for any area that requires longer open times, this receiver supports input voltages of 12 V and 24 V AC/DC. The BEA Extended Hold Digital Receiver (433 MHz) provides flexibility and protection.

Features:

• Extended hold time receiver keeps the door open for as long as the wireless signal is received
• Works with wireless transmitters that use a rolling code each time the activation button is pressed for enhanced security
• Programmable for up to 100 wireless transmitters per receiver unit
• Input voltage supports both 12 V and 24 V AC/DC for flexible installation

Specifications:

• Certifications: FCC and IC approved
• Dimension: Approximately 2.75"" x 2.125"" x 1""
• Frequency: 433 MHz
• Input Voltage: 12 to 24 V AC/DC
• Contact Rating: 1 A at 30 V DC; 0.5 A at 125 V AC; 0.3 A at 60 V DC
• Maximum Programmed Transmitters: 100 per receiver
