Details

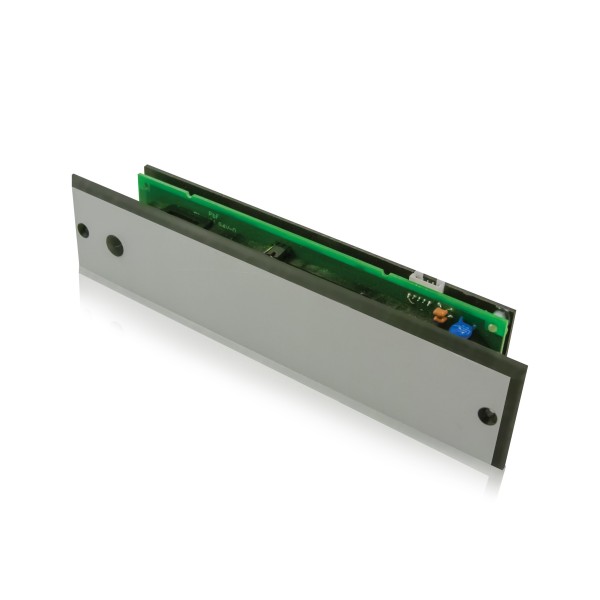

BEA Focus Recess-Mount Active Infrared Presence Sensor (24 VAC/DC) - 10FOCUS2

Key Features:

• Recess-Mount Active Infrared Presence Sensor Designed for Space-Limited Installations
• Low-Profile Recessed Design Enables Discreet Mounting Above or Within Ceilings
• Adjustable Detection Zone via Rotating Cam for Fine-Tuned Sensing Length
• Selectable NO or NC Relay Output for Integration with Gate or Barrier Controls
• Fast Detection Time Supports High-Traffic Applications in Drive-Thru Windows, Gates, or Revolving Doors

Specifications:

• Technology: Focused Active Infrared
• Detection Mode: Presence
• Power Supply: 24 VAC / VDC ~10 Percent
• Current Consumption: 60 mA (On) / 30 mA (Off)
• Output Interface: Relay; Max Contact Rating: 1 A at 30 V (Resistive)
• Detection Range: 0 - 8 ft 2 in (Approximate)
• Distance Adjustment: 2 - 8 ft via Rotating Cam with Linear Adjustment
• Detection Time: Less Than 50 ms
• Detection Signal Duration: Infinite Presence Detection
• LED Indicator: Green (No Detection)
• Operating Temperature: -30 F to 140 F
• Connection to Controller: 5-Conductor Cable
