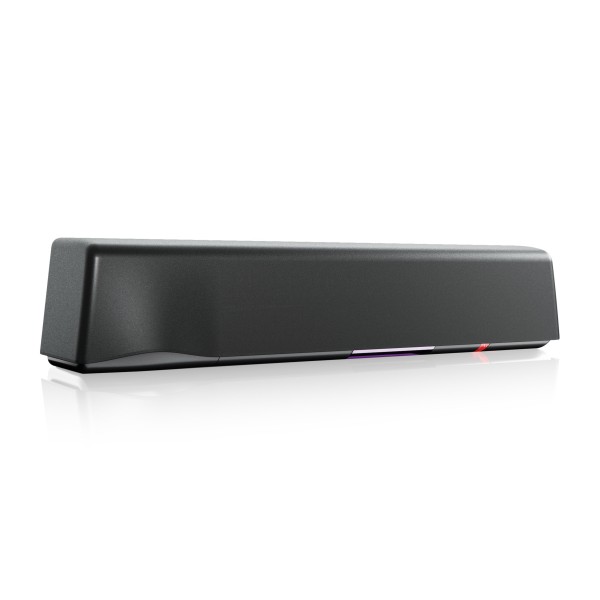

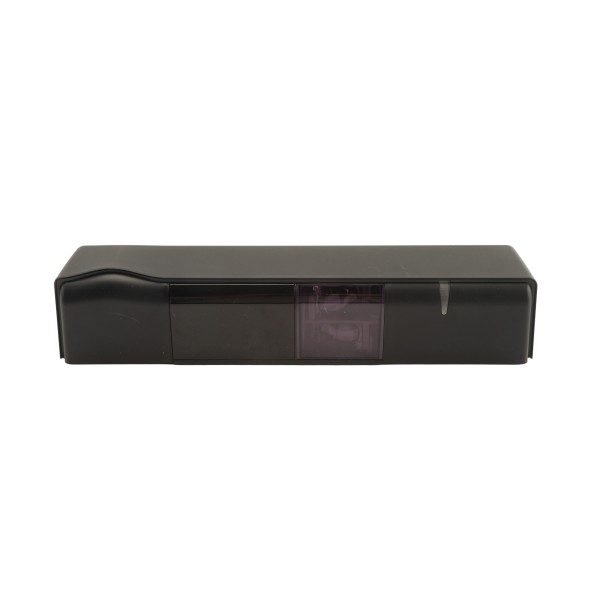

BEA Ultimo Dual-Technology Sliding Door Sensor - 10ULTIMO

Key Features:

• Dual-technology combining microwave motion detection and active infrared safety curtains
• Three adjustable infrared curtains, each with up to 32 detection spots
• Soft programming via menu-driven LCD and remote control
• ULTI-SHIELD technology for uniform sensitivity across infrared curtains
• ULTI-SYNC automatic synchronization for overlapping safety fields
• Visible red alignment spots to assist curtain positioning during installation
• Fully internally monitored with option for external monitoring
• Compact design suited for sliding door activation and safety applications

Specifications:

• Detection Mode: Motion and presence
• Technology: Microwave Doppler radar and active infrared with background analysis
• Radar Detection Speed (minimum): 2 in/s
• AIR Response Time (typical / max): Approx. 200 ms / 500 ms
• Radar Transmitter Frequency: 24.150 GHz
• Radar Radiated Power: Approx. 20 dBm EIRP
• Radar Power Density: Approx. 5 mW/cm sq.
• Radar Lobe Angles: 0 to 45 (typical), default 25
• Infrared Spots Size: 2" x 2"
• Number of Spots per Curtain: Up to 32
• Number of Curtains: 3
• Curtain Angles: -3 to 11 , default 0
• Mounting Height: 6 ft 6 in to 11 ft 6 in (typical: 7 ft 2 in)
• Relay Output 1 (Electromechanical): Max 30 VDC, 1 A; Hold time adjustable 0.5 s to 9 s
• Output Relay 2 (Solid state): Max 42 VAC / VDC, 400 mA; Hold time 0.3 s to 1 s
• Test / Monitoring Input: Low Approx. 1 V; High > 10 V (max 30 V); Response Approx. 5 ms typical
• Supply Voltage: 12 - 24 VAC ~10% (do not exceed 26.4 VAC); 12 - 30 VDC ~10%
• Power Consumption: Approx. 3.2 W
• Cable Length / Gauge: 10 ft / 26 AWG
• Degree of Protection: IP54
• Temperature Range: -13 F to 131 F
