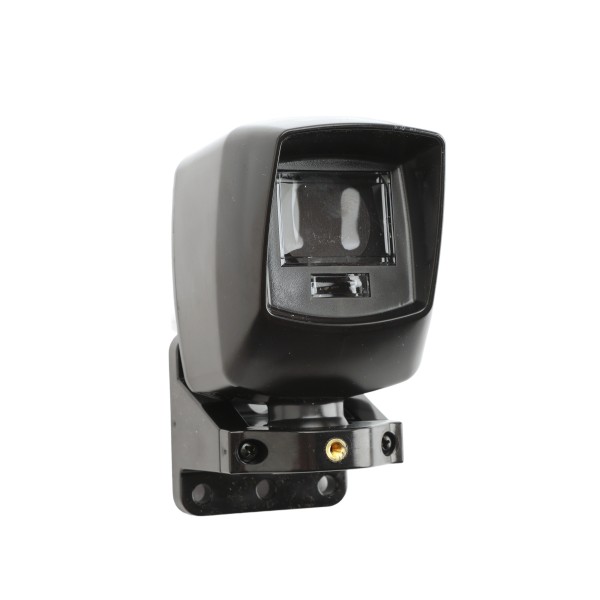

EMX 30 ft. Range Radar Presence Sensor - MRD-1P
Details
EMX 30 ft. Range Radar Presence Sensor - MRD-1P
The EMX MRD-1P Radar Presence Sensor is engineered for use with barrier arm operators to detect vehicles and pedestrians within a user-defined range of up to 30 feet. Utilizing single-sided RADAR technology, the MRD-1P is unaffected by rain, snow, fog, or sunlight, offering consistent performance without requiring a second sensor. Its Form C presence relay provides versatile output options, while a 3-digit display and ball-and-socket bracket make installation and setup quick and simple. Featuring a rugged NEMA 4X housing, the MRD-1P is designed to thrive in demanding outdoor environments, offering both fail-safe and fail-secure options.
Features
- Single-sided detection using RADAR technology with no need for paired devices
- Programmable detection range up to 30 feet
- Reliable performance unaffected by weather conditions
- Form C presence relay plus pulse on entry and exit options
- Easy-to-use 3-digit display for setup and configuration
- Includes ball and socket mounting bracket for flexible positioning
- NEMA 4X rated for harsh outdoor conditions
Specifications
- Operating Range: 1 ft (0.3 m) to 30 ft (9.1 m)
- Power Supply: 6 - 40 VDC or 12 - 24 VAC
- Current Draw: 50mA maximum
- Relay 1: Close on Presence / Open on Presence
- Relay 2: Pulse on Entry / Pulse on Exit
- Response Time: 30ms (250ms on power-up)
- Operating Temperature: - 40 to 140 Degrees F (-40 to 60 Degrees C)
- Environmental Rating: NEMA 4X
- Dimensions: 5.1" (130 mm) x 3.15" (80 mm) x 5.5" (140 mm)
- Mounting: ½ Inch NPT conduit connection
- FCC ID: Not specified separately (standard compliance implied)
SKU | MRD-1P |
---|---|
Product | Sensor |
Length | 30 ft |
Input Voltage | 12 AC, 24 AC |
Manufacturer | EMX Industries, Inc. |
Voltage | 6-40V DC or 12-24V AC |
Product Type | Sensor |
Specification Sheet | Download PDF file |
