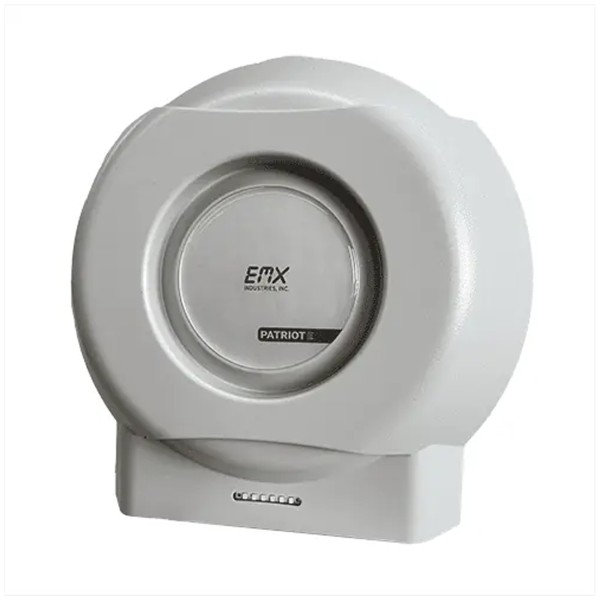

EMX TRES Patriot Long Range RFID Wireless Bluetooth Reader With 18'-25' Range, 26-Bit Wieg, With Circular Antenna - Patriot-E-BLE-25

The Patriot-E-BLE is a durable RFID reader with a long read range, making it an ideal long-range gate reader for vehicle access control. This EMX Tres Patriot solution features a robust, weather-resistant design and serves as a Wi-Fi access-control reader with extensive customization options and network features. It complies with several regulatory standards, making it a reliable choice for reading tags. Designed specifically for vehicle applications, it operates within the 902-928 MHz range and supports the access control reader 26-bit wiegand protocol for seamless integration. The inclusion of Bluetooth enables wireless remote access control, enhancing its versatility for various security setups.

Key Features:

• Includes Integrated Circular Polarized Antenna That Lets The Device Read Tags Regardless Of Tag Orientation
• Multiple Weigand Formats Are Supported
• LED Indicator And Audible Sounder Lets You Know The System's Operation And Status
• Store 500 Tage Numbers (5 Site Codes And 100 Tags Per Site)
• Can Be Used With Bluetooth Credentials
• Can Isolate Facility Codes
• Relay is Controllable With On/Off Option
• Is Compatible With Wiegand Interface, RS232 Communication, RS485 Protocol, OSDP Standard, Relay Interface, And Bluetooth Features
• Compatible with UHF EPC Gen2 tags, including windshield, hang, card, and headlamp formats

Specifications:

• Includes UHF 900 MHz And Wireless Bluetooth
• TX/RX Frequency: 902 - 928 MHz
• Max RF Power: 30dBm
• Read Range: 18-25 Feet
• LED And Sounder Indicator: Yes
• Antenna: Circular Polarized 7.5 dBi (Gain)
• Included Power Supply: 110/240AC to 12VDC
• Supply Voltage: 9-48VDC
• Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
• Rated IP65
• Operating Temperatures: -4 Degrees F To 158 Degrees F
• FCC Approved: Part 15
• Size: 8.78" x 7.87" x 2.36"
• Outputs To Controller: Wiegand, RS-232, Relay Contact, RS-485 / OSDP

Available Models

• Patriot-E: Circular polarized RFID reader with RS-232 programming
• Patriot-E.TCP: Adds Ethernet interface for network-based configuration
• Patriot-E.WiFi: Includes integrated Wi-Fi for wireless setup
• Patriot-E.BLE: Adds Bluetooth support for mobile credentials

EMX Patriot-E Long Range RFID Reader - WiFi, Bluetooth, Ethernet Options
