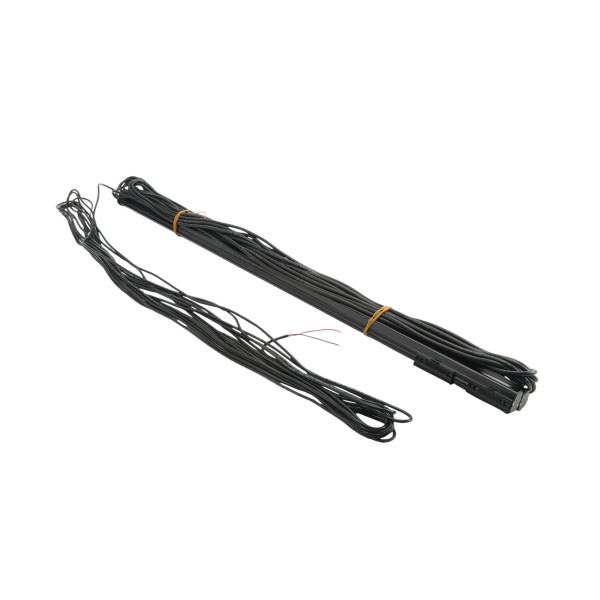

Miller Edge Light Curtain-DUO (MLC-DUO) 3ft - MLC-K36-DUO

The Miller Edge Light Curtain-DUO is an infrared safety system that creates an invisible protective barrier for commercial doors, preventing operator entrapment in motorized and high-speed door applications. Its Dual Universal Output allows a single device to support multiple output configurations—pulsed monitored, normally open relay, and normally closed relay—making it compatible with a wide range of door operators. With a 32-foot operating range and dense infrared detection field, it provides reliable safety while simplifying installation and reducing complexity for installers.

Specifications:

• 2-year warranty
• Protection Height: 36 inches (3 feet)
• Detection Elements: 8 elements
• Operating Range: 8–32 feet (2–10 meters)
• Power Source: 12–24 volts AC/DC
• Current Consumption: <100 mA @ 24V DC
• Output Frequency: 325 Hz
• Aperture Angle: EM: ±8°; RX: ±15°
• Operating Temperature Range: -40°F to +140°F (-40°C to +60°C)
• Maximum Ambient Light: >100,000 lux
• Dimensions: 1" W × 38" H × 1.1" D (25 mm × ~1 m × 28 mm)
• Weight: 32 oz each (emitter and receiver)
• Housing Material: PVC over aluminum
• Cable Length: 50 feet (15.24 meters)
• Degree of Protection: Not intended for outdoor use
