BEA LZR-Flatscan Dual Sensor Kit (White) - 10LZRFLATSCAN-SWW

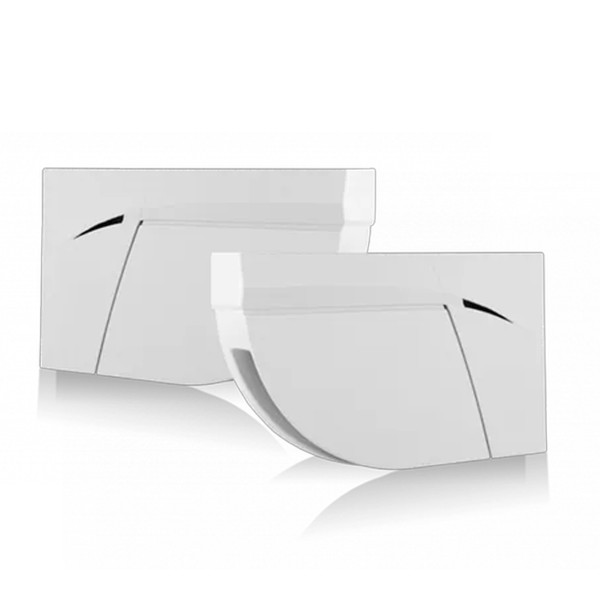

Combining dual-curtain laser scanning with precision presence detection, the BEA LZR-Flatscan Dual Sensor Kit (White) is an excellent choice for retail, healthcare, and commercial facilities. This sensor kit supports a quick hand-gesture configuration, ensuring easy setup. Featuring a sleek design, the BEA LZR-Flatscan Dual Sensor Kit (White) is built for performance and safety in mind.

Features:

• Dual-Curtain Laser Scanner Kit for Full Swing Door Safety Coverage
• Finger Detection Technology: Offers Enhanced Protection Around Hinge Area
• Hand Gesture Setup: Allows Rapid Door Width Adjustment Without Tools
• Four-Curtain Detection Field Ensures Coverage of Door Leaf, Hinge Area, and Leading Edge

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Opening Angle - Door Leaf Safety: 80 Degrees; Pinch Zone Safety: 20 Degrees
• Power Consumption: Less Than 2 W
• Dimensions: 5.75 in (L) x 3.5 in (H) x 2.33 in (D)
• Recommended Mounting Height: 75 in to 98 in
• Angular Resolution - Curtain 1: 0.2 Degrees; Curtain 2: 1 Degree; Curtain 3: 1.7 Degrees; Curtain 4: 2.5 Degrees
