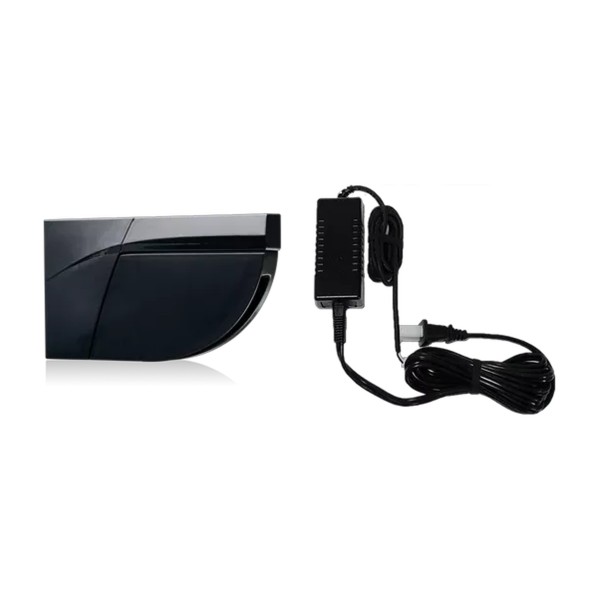

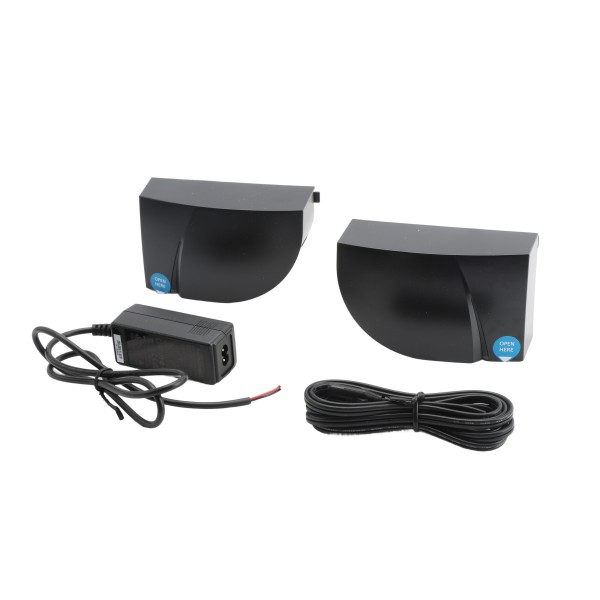

BEA LZR-Flatscan Dual Curtain Laser Scanner Kit with Power Supply (Black) - 10LZRFLATSCAN-SWBU

Key Features:

• Dual-Curtain Laser Scanner Kit for Full Swing Door Safety Coverage
• Includes Power Supply Module for Simplified Installation in Single Box
• Four-Curtain Detection Field Ensures Coverage of Door Leaf, Hinge Area, and Leading Edge
• Low-Profile Black Housing Kit Designed for Left-Side or Dual-Egress Installations
• Supports Fire-Rated Doors with UL 10B/10C Listing for One Hour Duration
• Hand Gesture Setup: Allows Rapid Door Width Adjustment Without Tools

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
• Recommended Mounting Height: 75 in to 98 in
• Opening Angle - Door Leaf Safety: 80 Degrees; Pinch Zone Safety: 20 Degrees
• Angular Resolution - Curtain 1: 0.2 Degrees; Curtain 2: 1 Degree; Curtain 3: 1.7 Degrees; Curtain 4: 2.5 Degrees
• Tilt Angles: 0 Degrees to 5 Degrees
• Minimum Object Size: 3/4 in at 13 ft in Curtain C1
• Minimum Door Leaf Speed: 2 Degrees per Second
• Supply Voltage: 12-24 VDC ~15 Percent
• Power Consumption: Less Than 2 W
• Response Time: Typical Less Than 120 ms - Maximum 220 ms
• Outputs: 3 Electronic Relays (Galvanic Isolation - Polarity Free)
• Maximum Switching Voltage: 42 VAC / VDC
• Maximum Switching Current: 100 mA
• Dimensions: 5.75 in (L) x 3.5 in (H) x 2.33 in (D)
• Material / Color: PC/ASA - Black
• Degree of Protection: IP44 (IEC 60529)
• Operating Temperature Range: -13 F to 140 F
• Humidity: 0 Percent to 95 Percent Non-Condensing
• Vibration Tolerance: Less Than 2 G
