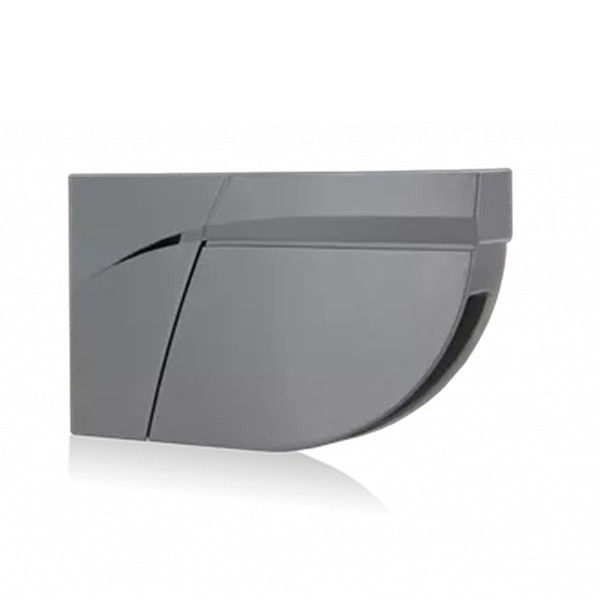

BEA LZR-Flatscan Swing Door Sensor Only (Left Side, Silver) - 10LZRFLATSCAN-LS

Offering detection for swing automatic doors, the BEA LZR-Flatscan Swing Door Sensor Only (Left Side, Silver) scans up to 13 feet of diagonal coverage to prevent accidental contact. With continuous presence feedback, this sensor features minimal detection impact from reflective floors, wet surfaces, or guide rails. Perfect for offices, schools, and storefronts, the BEA LZR-Flatscan Swing Door Sensor Only (Left Side, Silver) enables ADA-friendly access in a low-profile, sleek silver finish.

Features:

• Laser-based Time-of-Flight Sensor for Swing Doors
• Single-Curtain Detection Covering Door Leaf and Hinge Area
• Independent of Reflective Floors, Wet Surfaces or Guide Rails
• Fast Response Time Suitable for High-Traffic Entrances

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
>
• Power Consumption: Less Than 2 W
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Angular Resolution - Door Leaf Safety: 1.3 Degrees; Pinch Zone Safety: 0.2 Degrees
