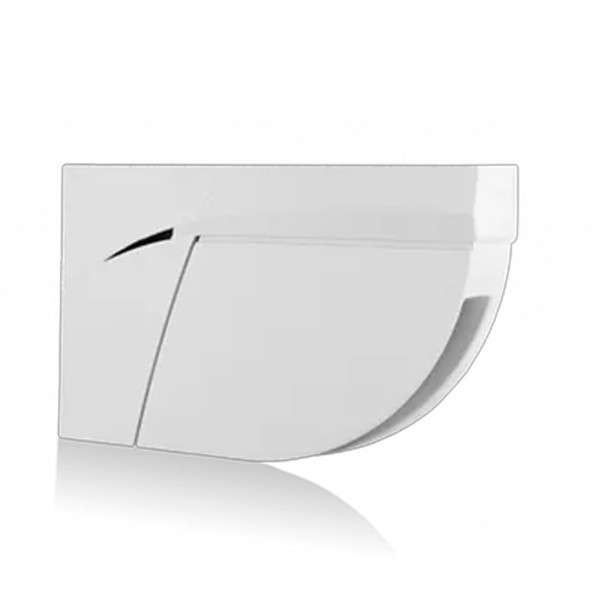

BEA Low Energy LZR-Flatscan Swing Door Sensor (Left Side, White) - 10LZRFLATSCAN-LELW

Offering detection for low-energy automatic doors, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Left Side, White) provides safety to the entire door path, including the pinch zone. With continuous presence feedback, allowing doors to react safely to approaching users, this sensor features minimal detection impact from reflective floors, wet surfaces, or guide rails. Perfect for hospitals, retail stores, and public buildings, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Left Side, White) allows for ADA-friendly access in a low-profile design.

Features:

• Laser-based Time-of-Flight Sensor for Low Energy Swing Doors
• Fast Response Time Suitable for High-Traffic Entrances
• Low-Profile White Housing Designed for Left-Side Mounting
• Complete Door Leaf Coverage Including Hinge Area with Advanced Detection

Specifications:

• Technology: Laser Scanner, Time-of-Flight Measurement
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Power Consumption: Less Than 2 W
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
