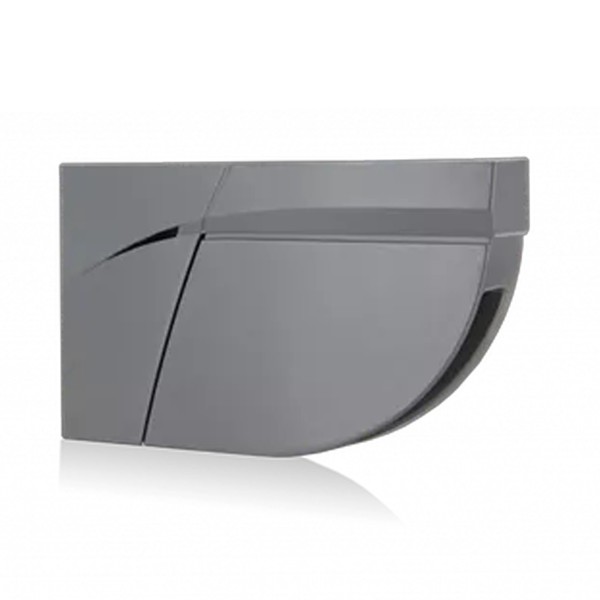

BEA Low Energy LZR-Flatscan Swing Door Sensor (Left Side, Silver) - 10LZRFLATSCAN-LELS

Offering detection for low-energy automatic doors, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Left Side, Silver) scans across the door face and hinge area to prevent accidental contact. With continuous presence feedback, this sensor features minimal detection impact from reflective floors, wet surfaces, or guide rails. Perfect for hospitals, hotels, and educational facilities, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Left Side, Silver) enables ADA-friendly access in a low-profile, silver design with a fast response for high-traffic areas.

Features:

• Complete Door Leaf Coverage Including Hinge Area with Advanced Detection
• Laser-based Time-of-Flight Sensor for Low Energy Swing Doors
• Fast Response Time Suitable for High-Traffic Entrances
• Independent of Reflective Floors, Wet Surfaces or Guide Rails

Specifications:

• Technology: Laser Scanner, Time-of-Flight Measurement
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Typical Minimum Object Size - Door Leaf Safety: 4 in @ 13 ft; Pinch Zone Safety: 3/4 in @ 13 ft
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
• Power Consumption: Less Than 2 W
