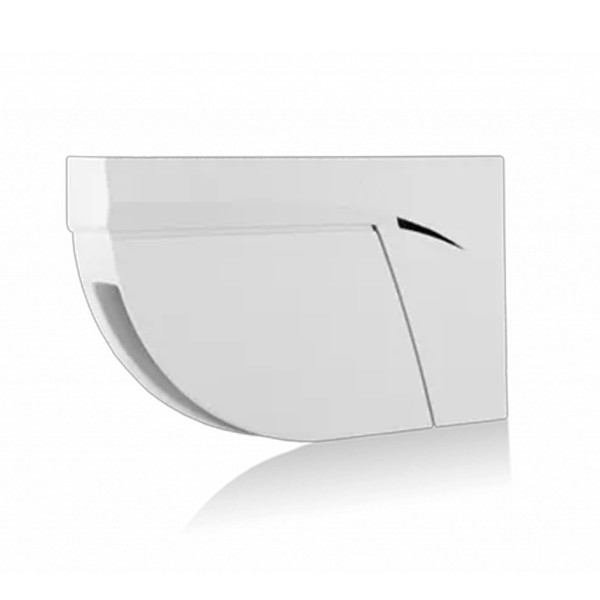

BEA Low Energy LZR-Flatscan Swing Door Sensor (Right Side, White) - 10LZRFLATSCAN-LERW

Offering detection for low-energy automatic doors, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Right Side, White) scans across the wide, even detection field over the swing path to prevent accidental contact. With continuous presence feedback, this sensor has minimal impact on detection from reflective floors, wet surfaces, or guide rails, thereby reducing unnecessary cycling. Perfect for hospitals, hotels, and educational locations, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Right Side, White) offers access in a sleek design that combines safety and accessibility.

Features:

• Complete Door Leaf Coverage including hinge area with Advanced Detection
• Low-Profile white housing designed for right-side mounting
• Independent of reflective floors, wet surfaces, or guide rails
• Fast response time meant for high-traffic entrances

Specifications:

• Technology: Laser Scanner, Time-of-Flight Measurement
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
• Angular Resolution - Door Leaf Safety: 1.3 Degrees; Pinch Zone Safety: 0.2 Degrees
• Power Consumption: Less Than 2 W
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
