Details

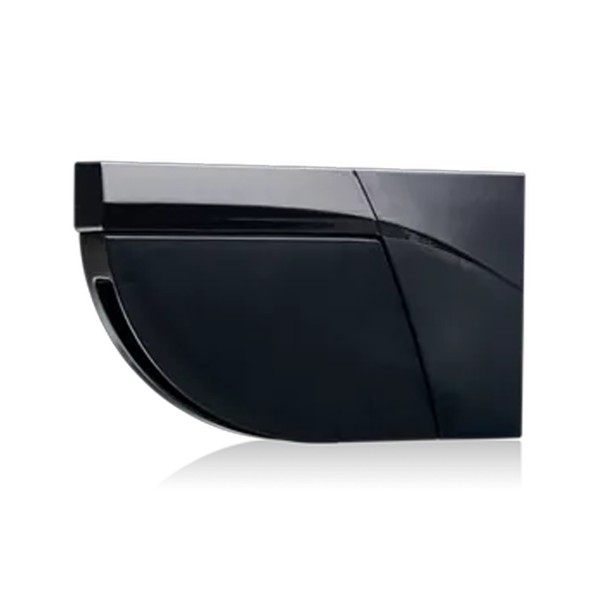

BEA Low Energy LZR-Flatscan Swing Door Sensor (Right Side, Black) - 10LZRFLATSCAN-LERB

Offering detection for low-energy automatic doors, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Right Side, Black) scans across the wide, even detection field over the swing path to prevent accidental contact. With continuous presence feedback, this sensor features minimal detection impact from reflective floors, wet surfaces, or guide rails, thereby reducing unnecessary cycling. Perfect for hospitals, hotels, and educational facilities, the BEA Low Energy LZR-Flatscan Swing Door Sensor (Right Side, Black) enables ADA-friendly access in a low-profile, black design that combines safety and accessibility.

Features:

• Laser-based Time-of-Flight Sensor for Low Energy Swing Doors
• Fast Response Time Suitable for High-Traffic Entrances
• Complete Door Leaf Coverage Including Hinge Area with Advanced Detection
• Independent of Reflective Floors, Wet Surfaces or Guide Rails

Specifications:

• Technology: Laser Scanner, Time-of-Flight Measurement
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Angular Resolution - Door Leaf Safety: 1.3 Degrees; Pinch Zone Safety: 0.2 Degrees
• Power Consumption: Less Than 2 W
• Response Time - Door Leaf Safety: Maximum 50 ms; Pinch Zone Safety: Maximum 90 ms
