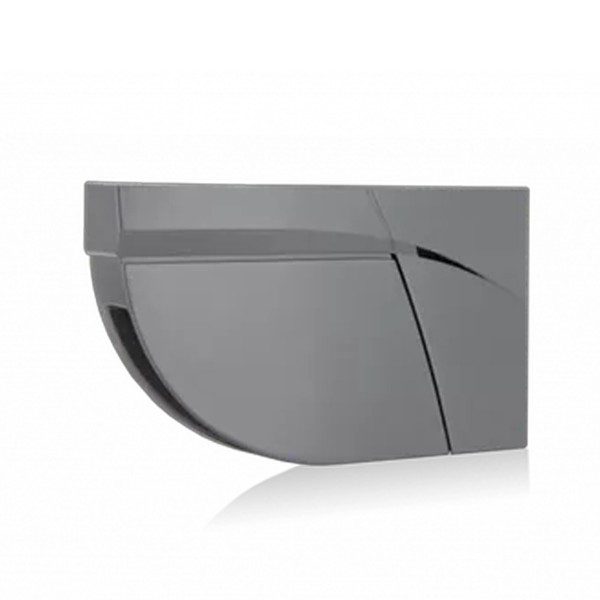

BEA LZR-Flatscan Swing Door Sensor Only (Right Side, Silver) - 10LZRFLATSCAN-RS

Offering detection for low-energy automatic doors, the BEA LZR-Flatscan Swing Door Sensor Only (Right Side, Silver) scans a 13-foot diagonal range to prevent accidental contact. With continuous presence feedback, this sensor features minimal detection impact from reflective floors, wet surfaces, or guide rails. Perfect for hospitals, hotels, and educational facilities, the BEA LZR-Flatscan Swing Door Sensor Only (Right Side, Silver) enables ADA-friendly access in a low-profile, silver design with a fast response for high-traffic areas.

Features:

• Laser-based Time-of-Flight Sensor for Swing Doors
• Independent of Reflective Floors, Wet Surfaces or Guide Rails
• Fast Response Time Suitable for High-Traffic Entrances
• Single-Curtain Detection Covering Door Leaf and Hinge Area

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Power Consumption: Less Than 2 W
• Response Time - Door Leaf Safety: Maximum 50 ms; Pinch Zone Safety: Maximum 90 ms
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
