Details

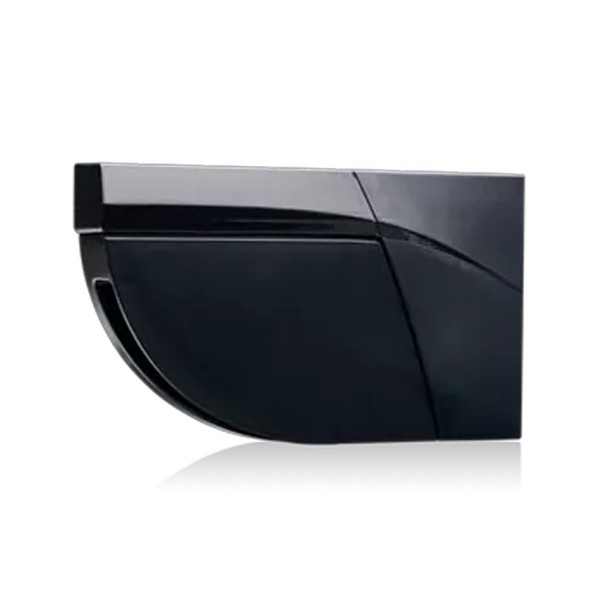

BEA LZR-Flatscan Swing Door Sensor Only (Right Side, Black) - 10LZRFLATSCAN-RB

Offering detection for swing automatic doors, the BEA LZR-Flatscan Swing Door Sensor Only (Right Side, Black) scans up to 13 feet of diagonal coverage to prevent accidental contact. With continuous presence feedback, this sensor features minimal detection impact from reflective floors, wet surfaces, or guide rails. Perfect for facilities, medical centers, and retail entrances, the BEA LZR-Flatscan Swing Door Sensor Only (Right Side, Black) enables quick ADA-friendly access in a sleek, low-profile black design.

Features:

• Independent of Reflective Floors, Wet Surfaces or Guide Rails
• Fast Response Time Suitable for High-Traffic Entrances
• Laser-based Time-of-Flight Sensor for Swing Doors
• Single-Curtain Detection Covering Door Leaf and Hinge Area

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Power Consumption: Less Than 2 W
• Response Time - Door Leaf Safety: Maximum 50 ms; Pinch Zone Safety: Maximum 90 ms
