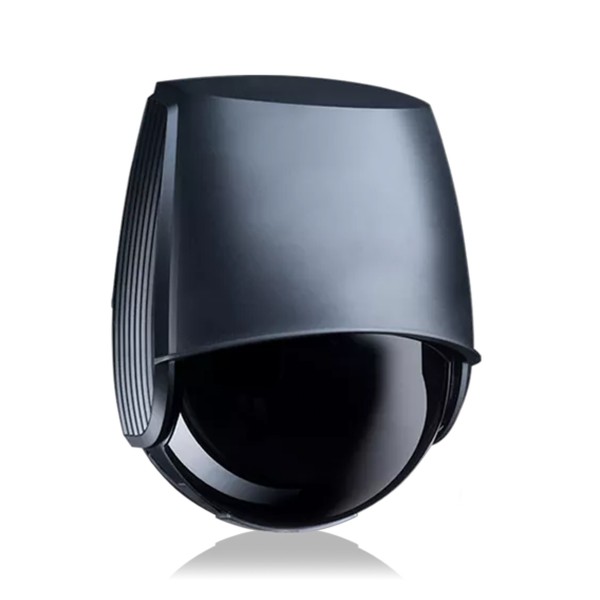

BEA LZR-Widescan Industrial Motion & Presence Sensor - 10LZRWIDESCAN

Key Features:

• Laser-based time-of-flight scanning with seven angled laser curtains
• Combined motion, presence, height, and speed detection modes
• Virtual pull-cord function to distinguish pedestrian and vehicle traffic
• Visible laser alignment spots for accurate pattern positioning
• Wireless configuration via Bluetooth or mobile app
• Volumetric detection field independent of ground conditions
• Energy-efficient design to reduce false activations and unnecessary door cycling
• Single sensor for activation, presence, and safety functions

Specifications:

• Technology: Laser scanner, time-of-flight measurement (7 laser curtains)
• Detection Modes: Motion, presence, height, and speed
• Maximum Detection Field: Width = 1.2 x mounting height; Depth = 1.2 x mounting height (adjustable)
• Thickness of First Curtain: 1/4"
• Typical Mounting Height: 6 ft 6 in to 32 ft
• Minimum Reflectivity Factor: Greater than 2%
• Minimum Object Size: 6" at 19 ft 6 in (proportionate with distance)
• Emission Characteristics: IR laser 905 nm, output 0.10 mW (Class 1); visible laser 635 nm, output 0.95 mW (Class 2)
• Supply Voltage: 12 - 24 VAC ~10%; 12 - 30 VDC ~10%
• Power Consumption: Less than 2.5 W (heating off); less than 10 W typical (heating ECO/AUTO); maximum 15 W
• Response Time: Typical 230 ms; maximum 800 ms (depends on immunity settings)
• Outputs: 2 solid-state relays (galvanic isolation, polarity free) 24 VAC / 30 VDC maximum switching, 100 mA; 1 electromechanical relay 42 VAC / VDC, 500 mA
• Input (Test / Monitoring): 30 VDC (maximum); low less than 1 V; high greater than 10 V; response threshold
• Bluetooth Communication: 2402 - 2480 MHz; maximum transmit power 12 dBm
• Dimensions: 7 3/4" (H) x 6" (W) x 4" (D) (approximate)
• Material / Color: PC / ASA, Black
• Protection Degree: NEMA 4 / IP65
• Temperature Range: -22 F to 140 F
• Rotation Angles (Bracket): 45 Degrees right, 15 Degrees left (lockable)
• Tilt Angles (Bracket): -10 Degrees to 5 Degrees
• Norm / Compliance: EN 300 328 V2.2.2; EN 301 489-1 V2.2.2; EN 60825-1:2014; EN 62311:2008; CSA / UL 62368-1
