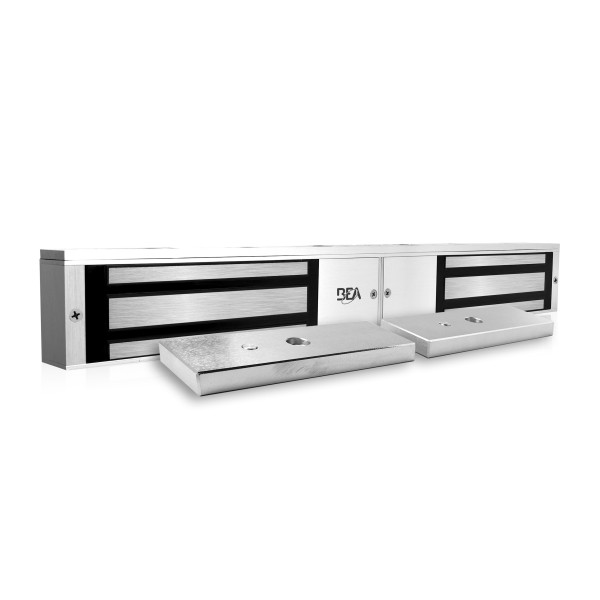

BEA Double Gang UL Listed Maglock with Door Status (1200lb Hold Force) - 10MAGLOCK5ULDS

Key Features:

• UL Listed dual electromagnetic lock designed for double-door systems with a total 1200 lb holding force (600 lb per door)
• Equipped with built-in door status sensors for real-time monitoring and integration with access control systems
• Fail-safe magnetic operation ensures the locks release immediately during power loss for safe egress
• Durable anodized aluminum housing with stainless steel armature plates for maximum strength and corrosion resistance
• Integrated surge and spike protection to enhance electrical safety and product longevity
• Low-profile double gang configuration suitable for paired doors in commercial and institutional settings
• UL Listed for compliance with ANSI/BHMA A156.23 standards, ensuring dependable safety and performance

Specifications:

• Lock Type: Dual-door electromagnetic lock with built-in door status monitoring
• Holding Force: 1200 lb total (600 lb per door)
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC (per lock)
• Operation Mode: Fail-safe (unlocks automatically when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plates
• Finish: Clear anodized corrosion-resistant finish
• Switch Type: Door status sensor (SPDT dry contact) for each lock
• Mounting: Surface-mount double gang configuration for double doors
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, ANSI/BHMA A156.23 compliant
• Applications: Perfect for secure dual-door access control in commercial, institutional, and industrial environments
