Details

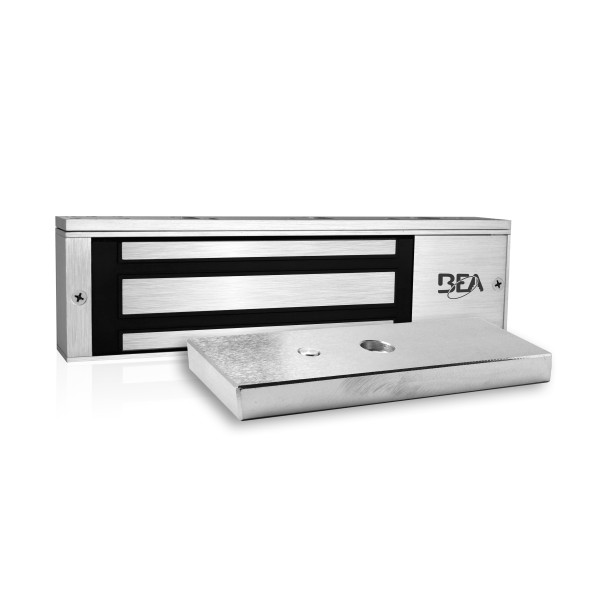

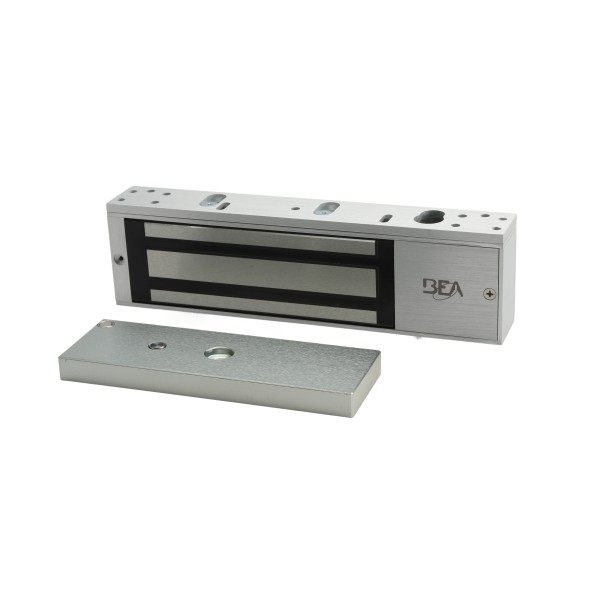

BEA Single Gang UL Listed Maglock with Door Status (1200lb Hold Force) - 10MAGLOCK1ULDS

Key Features:

• Heavy-duty electromagnetic lock delivering 1200 lb of holding force for secure single-door applications
• Integrated door status sensor allows real-time monitoring of locked or unlocked states for enhanced security management
• UL Listed design ensures compliance with safety and performance standards in commercial and industrial installations
• Fail-safe magnetic operation automatically unlocks the door upon power loss for safe egress
• Durable anodized aluminum housing and stainless steel armature plate resist corrosion and wear in demanding environments
• Compatible with standard access control systems for flexible integration into new or existing installations
• Includes built-in surge and spike protection to safeguard internal electronics and extend lifespan

Specifications:

• Lock Type: Single-door electromagnetic lock with door status monitoring
• Holding Force: 1200 lb
• Voltage: 12/24V DC dual-voltage operation
• Current Draw: 500 mA at 12V DC / 250 mA at 24V DC
• Operation Mode: Fail-safe (unlocks when power is removed)
• Material: Anodized aluminum housing with stainless steel armature plate
• Finish: Clear anodized corrosion-resistant finish
• Switch Type: Built-in door status sensor (SPDT dry contact)
• Operating Temperature: -4 F to +131 F (-20 C to +55 C)
• Certifications: UL Listed, compliant with ANSI/BHMA A156.23 standards
• Applications: Commercial, industrial, and institutional door access systems requiring monitored lock status
