Miller Edge Aries LED Mounting Channel Kit for 12' 3" to 14' 2" Sectional Doors

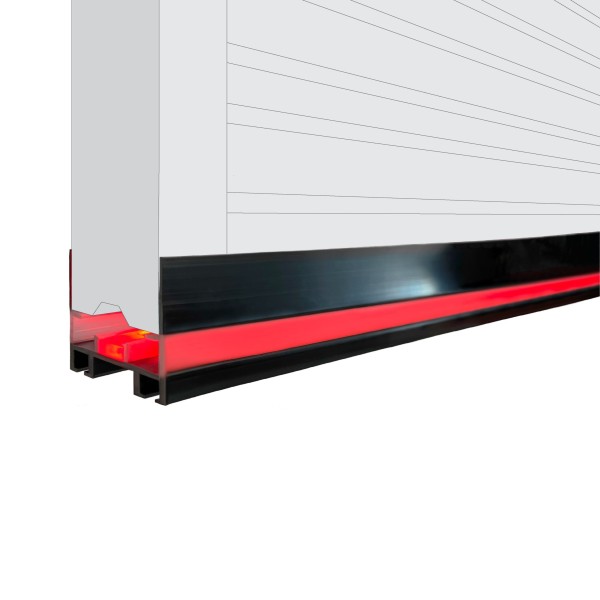

Ensure that your sectional doors are kept safe and staff are alerted instantly when your warehouse doors are moving with the Aries LED Mounting Channel kit. This UV resistant, PVC channel has a built in LED light bar that shines red when closed, green when open, and flashes red when your sectional door is in motion. Operating for up to 40,000 hours off the included 115-230V power supply or a 24V LED using a wall outlet, this kit is compatible with ME123 & CPT215 Sensing Edges as well as the LS-0107 Weather Seal for enhanced compatibility.

Features:

• Dual Sided Always On LEDs provides visibility on both the interior and exterior of the door opening
• Diffused Light Window: Transforms individual LEDs into a solid, uniform bar of light
• UV Resistant PVC Channel
• Door Compatibility: Fits 1 3/4-in. to 2-in. thick sectional doors
• Retrofit Ready Design: Ideal for high traffic commercial environments

Compatible With:

• ME123 Sensing Edges
• CPT215 Sensing Edges
• LS-0107 Weather Seal

Kit Includes:

• LED Controller
• Mounting channel
• LED controller
• Wiring kit

Specifications:

• Size: Up to 14' 2" (12' 3" Minimum)
• Lifespan: 44,000 hours
• LEDs 18 bi-color LED lights per foot
• Brightness Red: 532 lm/m Green: 2,392 lm/m
• Illumination Mode Continuous (always on)
• Activation Operator signal activated
• Operating Temperature -30° to +140°F (-34° to 60°C)
• Power Source 115-230V power supply, 24V LED via wall outlet
• Mounting/Visibility Interior mounting; visible from both interior and exterior
• Controller box: 7 W x 9.5 H x 4 D-in. (178 x 241 x 102 mm)
• LED strip cable: 1-ft. (0.3 m)
• LED strip extension cable: 4-ft. (2.4 m)
• CDO signal cable: 20-ft. (6.1 m)
• Power supply cable: 3-ft. (0.9 m)
• LED Strip: UV protected silicone sheath
• Mounting Channel: High density rigid PVC
• Mounting Mounted to the leading edge of a 1.75-in. to 2-in. sectional door with the appropriate fasteners
• LED strip component: IP68 LED Controller enclosure: NEMA 4
