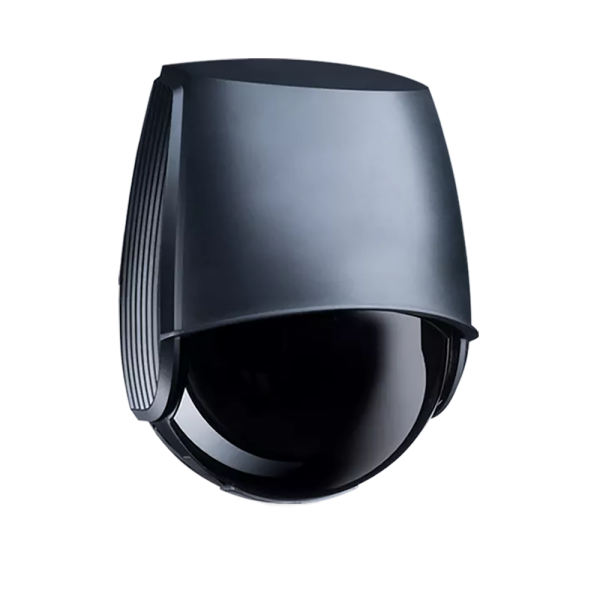

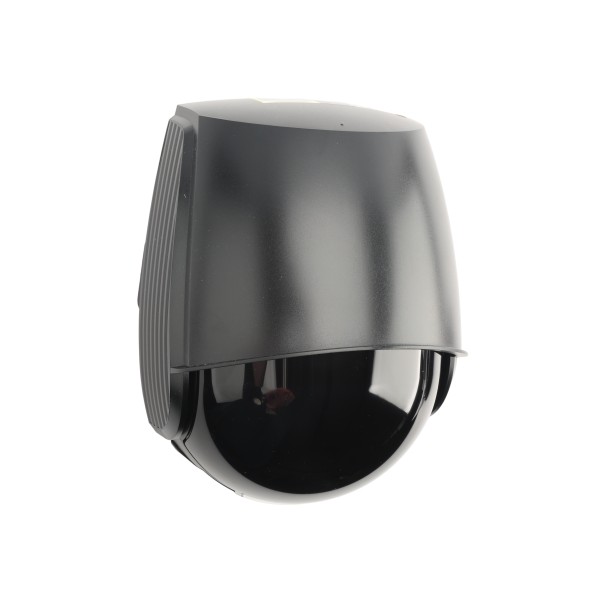

MMTC Industrial Laser - LZR-Widescan

The LZR-Widescan uses a laser-based time-of-flight sensor to verify accurate object detection. This laser scanner is made for industrial doors with seven laser-based curtains for a three-dimensional safety zone. It can detect people and vehicles so that you can use it indoors or outdoors. It is housed in a NEMA 4-rated enclosure to withstand any weather conditions. The two visible LED spots give you accurate reference points and help you adjust the tilt angle. You can use the LZR-WIDESCAN mobile app to adjust settings.

Key Features:

• Seven Curtains Of Detection
• Can Detect Objects That Are As Small As 2 Inches From 30 Feet Away
• NEMA 4 And IP65 Protection
• Can Monitor Even With Interferences
• Will Function Still In Extreme Weather
• Two LEDs To Help Pattern Alignment
• Wireless configuration via Bluetooth or mobile app
• Single sensor for activation, presence, and safety functions
• Visible laser alignment spots for accurate pattern positioning
• Visible laser alignment spots for accurate pattern positioning

Specifications:

• Dimensions: 7 3/4" (H) x 6" (W) x 4" (D) (approximate)
• Detection Modes: Motion, Presence, Height, Speed
• Supply Voltage: 12 - 24 VAC ~10%; 12 - 30 VDC ~10%
• Rotation Angles (Bracket): 45 Degrees right, 15 Degrees left (lockable)
• Minimum Object Size: 6" at 19 ft 6 in (proportionate with distance)
• Typical Mounting Height: 6 ft 6 in to 32 ft
• Detection Mode: Motion, Presence, Height, And Speed
• Output: 2 Solid-State Relays (Galvanic Isolation, Polarity Free)
• Rotation Angles On Bracket: 45 Degrees To The Right And 15 Degrees To The Left
• Color: Black
• Material: PC/ASA
• Temperature Range: -22 Degrees F to +140 Degrees F
