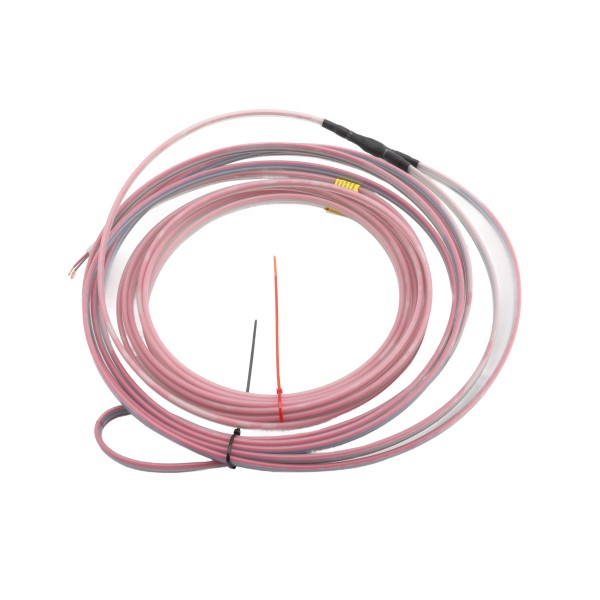

BD Loops SC 18-20 18' Saw-Cut Loop With 20' Lead-In

BD Loops SC 18-20 18' Saw-Cut Loop With 20' Lead-In
$80.85
The SC 18-20 Preformed Saw-Cut Inductance Loop is used for saw-cut installations that require a 3/16" grove to be cut into the concrete or asphalt. After the cut into the concrete or asphalt the wire is stuffed and sealed into the surface then sealed with loop sealant.

OR

Call (800) 878-7829

Details

The SC-18-20 Preformed Saw-Cut Inductance Loop, manufactured by BD Loops, is for installation in asphalt or concrete with a 3/16" saw-cut groove. Saw-cut loops are designed for existing driveways and surfaces and this loop comes pre-tested three different ways, including meg-ohm meter, inductance meter and live detector. With the lead-in and loop jackets the same size, there's no need for a second cut, streamlining the installation process.

Features:

  • Custom Polyethylene Outer Jacket
  • Compact Size And Reduced Weight
  • No Air Pocket In Loop Wire Design
  • Pre-Phased And Color Coded At Factory
  • 16 AWG Loop Wire Design For Superior Performance
  • Requires 30-40 percent Less Sealant To Seal Groove
  • For Installation In Asphalt Or Concrete 3/16 Saw-Cut Groove
  • Built-In Backer Rod And Third Level of Insulation Protect Against Failure

Loop Specifications: :

  • Install Loop Black Side Up
  • Conductor: #16 AWG Wire
  • Loop Size: 18' (4'X5' or 3'X6')
  • Outer Jacket: LLDPE Outer Jacket
  • Inner Jacket: Micro-Dusted Nylon Coated Inner Jacketed

Lead-In Specifications:

  • Length: 20'
  • Conductor: #16 AWG Wire
  • Outer Jacket: LLDPE Outer Jacket
  • Inner Jacket: Micro-Dusted Nylon Coated Inner Jacketed

Specification Sheet

Installation Manual

Additional Information

SKU SC 18-20
Product Preformed Loop
Lead-In Size 20'
Loop Size 18'
Loop Type Saw-Cut
Manufacturer BD Loops, Inc.
